Description

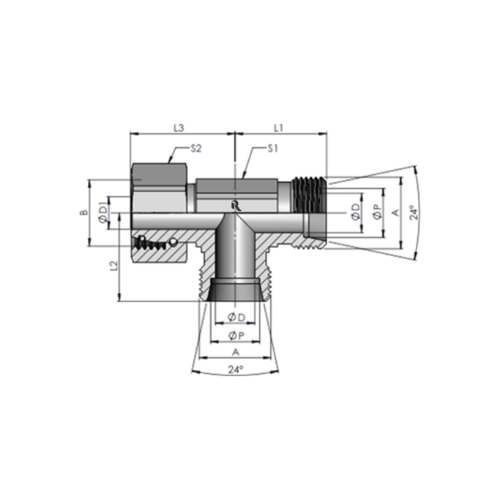

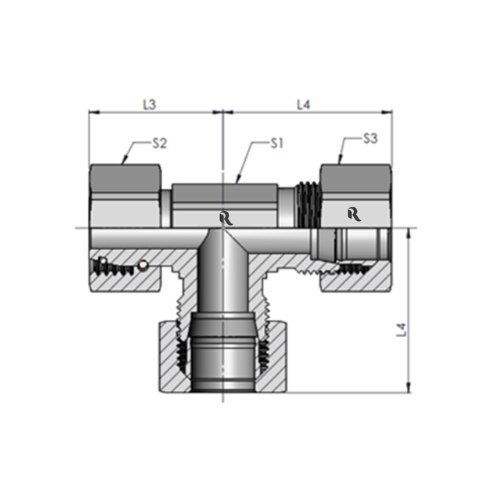

| Tube O.D. | A Thread | B Thread | S1 Hex | S2 Hex | S3 Hex | L1 L2 | L3 | L4 | ØD | ØD1 | ØP | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M16X1.5-6g | M16X1.5-6H | 14.00 | 19.00 | 19.00 | 24.00 | 27.00 | 32.00 | 5.0 | 4.00 | 8.00 | RJ-XEL08S | RJ-EL08S | 38-42 | 400 |
| 10 | M18X1.5-6g | M18X1.5-6H | 17.00 | 22.00 | 22.00 | 25.00 | 29.50 | 34.00 | 7.0 | 6.00 | 10.00 | RJ-XEL10S | RJ-EL10S | 47-53 | 400 |
| 12 | M20X1.5-6g | M20X1.5-6H | 17.00 | 24.00 | 24.00 | 29.00 | 30.50 | 38.00 | 8.0 | 8.00 | 12.00 | RJ-XEL12S | RJ-EL12S | 57-63 | 400 |
| 16 | M24X1.5-6g | M24X1.5-6H | 24.00 | 30.00 | 30.00 | 33.00 | 36.00 | 43.00 | 12.0 | 11.00 | 16.00 | RJ-XEL16S | RJ-EL16S | 80-90 | 400 |
| 20 | M30X2.0-6g | M30X2.0-6H | 27.00 | 36.00 | 36.00 | 37.00 | 44.00 | 48.00 | 16.0 | 14.00 | 20.00 | RJ-XEL20S | RJ-EL20S | 133-147 | 400 |
| 25 | M36X2.0-6g | M36X2.0-6H | 36.00 | 46.00 | 46.00 | 42.00 | 49.50 | 54.00 | 20.0 | 18.00 | 25.00 | RJ-XEL25S | RJ-EL25S | 180-200 | 400 |
| 30 | M42X2.0-6g | M42X2.0-6H | 41.00 | 50.00 | 50.00 | 49.00 | 55.0 | 62.00 | 25.0 | 23.00 | 30.00 | RJ-XEL30S | RJ-EL30S | 257-283 | 250 |
| 38 | M52X2.0-6g | M52X2.0-6H | 50.00 | 60.00 | 60.00 | 57.00 | 63.0 | 72.00 | 32.0 | 30.00 | 38.00 | RJ-XEL38S | RJ-EL38S | 257-283 | 250 |
