Description

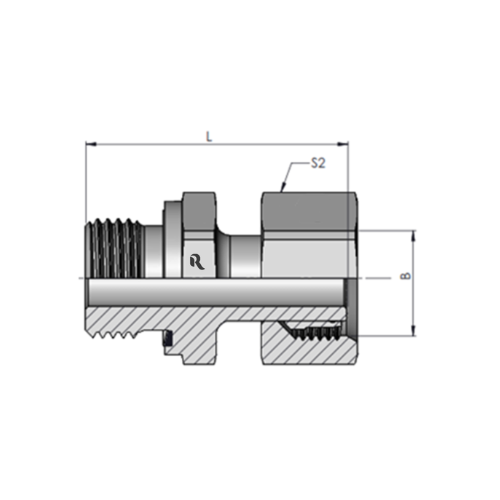

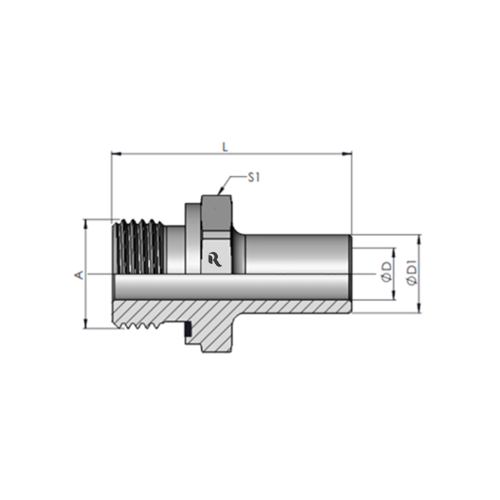

| Tube O.D. | A Thread | B Thread | S1 Hex | S2 Hex | L | ØD DRILL | ØD1 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | G1/4″-19-BSPP-A | M14X1.5-6H | 19.00 | 17.00 | 39.00 | 3.00 | 6.00 | RJ-XSP06SRED | RJ-EVGE06SRED | 14-16 | 630 |
| 8 | G1/4″-19-BSPP-A | M16X1.5-6H | 19.00 | 19.00 | 41.50 | 4.00 | 8.00 | RJ-XSP08SRED | RJ-EVGE08SRED | 25-28 | 630 |
| 10 | G3/8″-19-BSPP-A | M18X1.5-6H | 22.00 | 22.00 | 44.00 | 6.00 | 10.00 | RJ-XSP10SRED | RJ-EVGE10SRED | 27-30 | 630 |
| 12 | G3/8″-19-BSPP-A | M20X1.5-6H | 22.00 | 24.00 | 46.00 | 7.00 | 12.00 | RJ-XSP12SRED | RJ-EVGE12SRED | 43-54 | 630 |
| 14 | G1/2″-14-BSPP-A | M22X1.5-6H | 27.00 | 27.00 | 50.50 | 9.00 | 14.00 | RJ-XSP14SRED | RJ-EVGE14SRED | 50-62 | 630 |
| 16 | G1/2″-14-BSPP-A | M24X1.5-6H | 27.00 | 30.00 | 51.00 | 11.00 | 16.00 | RJ-XSP16SRED | RJ-EVGE16SRED | 60-75 | 400 |
| 20 | G3/4″-14-BSPP-A | M30X2.0-6H | 32.00 | 36.00 | 59.00 | 15.00 | 20.00 | RJ-XSP20SRED | RJ-EVGE20SRED | 90-110 | 400 |
| 25 | G1″-11-BSPP-A | M36X2.0-6H | 41.00 | 46.00 | 66.00 | 17.00 | 25.00 | RJ-XSP25SRED | RJ-EVGE25SRED | 125-145 | 400 |
| 30 | G1-1/4″-11-BSPP-A | M42X2.0-6H | 50.00 | 50.00 | 71.00 | 22.00 | 30.00 | RJ-XSP30SRED | RJ-EVGE30SRED | 170-190 | 250 |
| 38 | G1-1/2″-11-BSPP-A | M52X2.0-6H | 55.00 | 60.00 | 82.00 | 28.00 | 38.00 | RJ-XSP38SRED | RJ-EVGE38SRED | 200-245 | 250 |
