Description

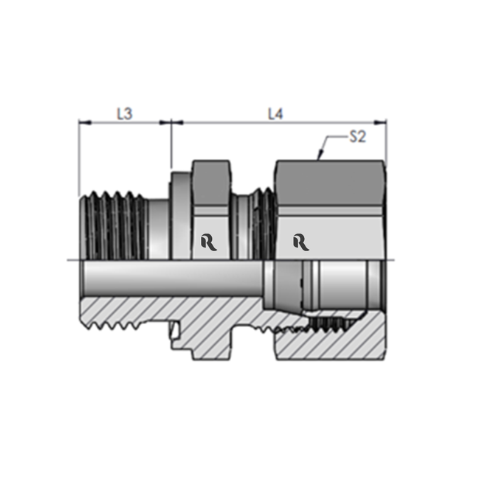

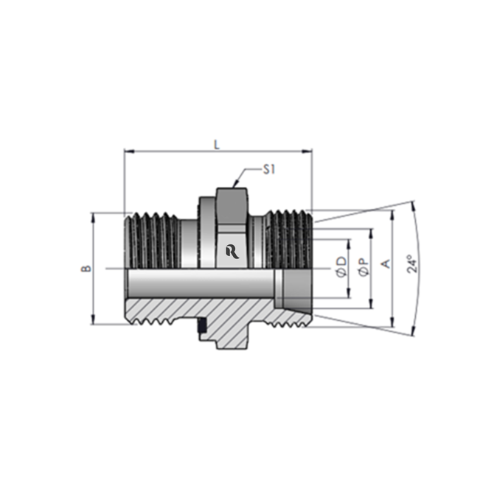

| Tube O.D. | A Thread | B Thread | S1 Hex | S2 Hex | L | ØD DRILL | ØP | L3 | L4 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M12X1.5-6g | M10X1.0-6g | 14.00 | 14.00 | 23.50 | 4.00 | 6.00 | 8.00 | 23.00 | RJ-XGE06LMED | RJ-GE06LMED | 13-15 | 250 |
| 8 | M14X1.5-6g | M12X1.5-6g | 17.00 | 17.00 | 29.00 | 6.00 | 8.00 | 12.00 | 25.00 | RJ-XGE08LMED | RJ-GE08LMED | 15-18 | 250 |
| 10 | M16X1.5-6g | M14X1.5-6g | 19.00 | 19.00 | 30.00 | 7.00 | 10.00 | 12.00 | 26.00 | RJ-XGE10LMED | RJ-GE10LMED | 25-28 | 250 |
| 12 | M18X1.5-6g | M16X1.5-6g | 22.00 | 22.00 | 31.50 | 9.00 | 12.00 | 12.00 | 27.00 | RJ-XGE12LMED | RJ-GE12LMED | 27-30 | 250 |
| 15 | M22X1.5-6g | M18X1.5-6g | 24.00 | 27.00 | 32.50 | 11.00 | 15.00 | 12.00 | 29.00 | RJ-XGE15LMED | RJ-GE15LMED | 50-60 | 250 |
| 18 | M26X1.5-6g | M22X1.5-6g | 27.00 | 32.00 | 36.00 | 14.00 | 18.00 | 14.00 | 31.00 | RJ-XGE18LMED | RJ-GE18LMED | 60-75 | 160 |
| 22 | M30X2.0-6g | M26X1.5-6g | 32.00 | 36.00 | 40.00 | 18.00 | 22.00 | 16.00 | 33.00 | RJ-XGE22LMED | RJ-GE22LMED | 85-105 | 160 |
| 28 | M36X2.0-6g | M33X2.0-6g | 41.00 | 41.00 | 43.00 | 23.00 | 28.00 | 18.00 | 34.00 | RJ-XGE28LMED | RJ-GE28LMED | 120-140 | 100 |
| 35 | M45X2.0-6g | M42X2.0-6g | 50.00 | 50.00 | 48.00 | 30.00 | 35.00 | 20.00 | 39.00 | RJ-XGE35LMED | RJ-GE35LMED | 170-190 | 100 |
| 42 | M52X2.0-6g | M48X2.0-6g | 55.00 | 60.00 | 52.00 | 36.00 | 42.00 | 22.00 | 42.00 | RJ-XGE42LMED | RJ-GE42LMED | 190-230 | 100 |
