N-S Nut
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
Description

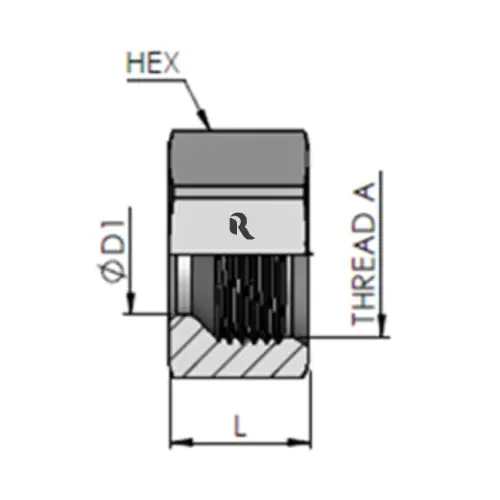

| Tube O.D. |
HEX |
ØD1 |
L Length |
A THREAD |
Part Number |
Torque N-m |
Working pressure in Bar |
| 6 |
17.00 |
6.00 |
16.50 |
M14X1.5-6H |
RJ-ME6SS |
14-16 |
630 |
| 8 |
19.00 |
8.00 |
16.50 |
M16X1.5-6H |
RJ-ME8SS |
25-28 |
630 |
| 10 |
22.00 |
10.00 |
17.50 |
M18X1.5-6H |
RJ-ME10SS |
27-30 |
630 |
| 12 |
24.00 |
12.00 |
17.50 |
M20X1.5-6H |
RJ-ME12SS |
43-54 |
630 |
| 14 |
27.00 |
14.00 |
20.50 |
M22X1.5-6H |
RJ-ME14SS |
50-62 |
630 |
| 16 |
30.00 |
16.00 |
20.50 |
M24X1.5-6H |
RJ-ME16SS |
60-75 |
400 |
| 20 |
36.00 |
20.00 |
24.00 |
M30X2.0-6H |
RJ-ME20SS |
90-110 |
400 |
| 25 |
46.00 |
25.00 |
27.00 |
M36X2.0-6H |
RJ-ME25SS |
125-145 |
400 |
| 30 |
50.00 |
30.00 |
29.00 |
M42X2.0-6H |
RJ-ME30SS |
170-190 |
250 |
| 38 |
60.00 |
38.00 |
32.50 |
M52X2.0-6H |
RJ-ME38SS |
200-245 |
250 |
