Description

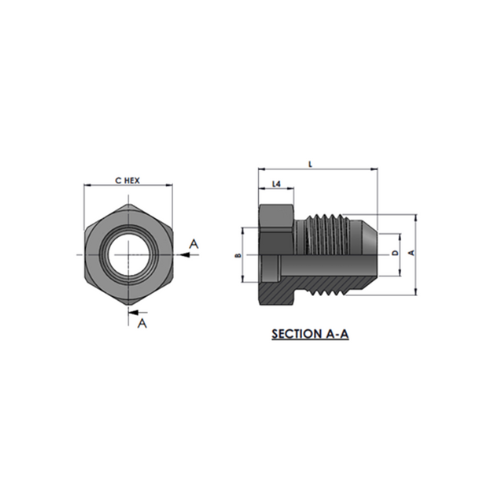

| Tube O.D. | A THREAD | H Hex | L Length | D DRILL | L4 Length | B BORE | Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 7/16″-20UNF-2A | 12.70 | 14.00 | 4.40 | 5.60 | 6.50 | RJ-0403-04-04 | 15-16 | 345 |
| 5/16″ | 7/16″-20UNF-2A | 12.70 | 14.00 | 4.40 | 5.60 | 8.10 | RJ-0403-05-04 | 15-16 | 345 |
| 5/16″ | 1/2″-20UNF-2A | 14.28 | 14.00 | 6.00 | 5.60 | 8.10 | RJ-0403-05-05 | 19-21 | 345 |
| 3/8″ | 9/16″-18UNF-2A | 15.88 | 14.10 | 7.50 | 6.40 | 9.68 | RJ-0403-06-06 | 24-28 | 345 |
| 3/8″ | 3/4″-16UNF-2A | 20.62 | 16.70 | 9.90 | 6.40 | 9.68 | RJ-0403-06-08 | 49.53 | 310 |
| 1/2″ | 9/16″-18UNF-2A | 20.62 | 14.10 | 7.50 | 6.40 | 12.85 | RJ-0403-08-06 | 24-28 | 345 |
| 1/2″ | 3/4″-16UNF-2A | 20.62 | 16.70 | 9.90 | 6.40 | 12.85 | RJ-0403-08-08 | 49-53 | 310 |
| 1/2″ | 7/8″-14UNF-2A | 23.80 | 19.30 | 12.30 | 7.90 | 12.85 | RJ-0403-08-10 | 77-85 | 240 |
| 5/8″ | 3/4″-16UNF-2A | 23.80 | 16.70 | 9.90 | 6.40 | 16.03 | RJ-0403-10-08 | 49-53 | 310 |
| 5/8″ | 7/8″-14UNF-2A | 23.80 | 19.30 | 12.30 | 7.90 | 16.03 | RJ-0403-10-10 | 77-85 | 240 |
| 5/8″ | 1-1/16″-12UN-2A | 31.75 | 21.90 | 15.50 | 9.70 | 16.03 | RJ-0403-10-12 | 107-119 | 240 |
| 3/4″ | 3/4″-16UNF-2A | 31.75 | 16.70 | 9.90 | 9.70 | 19.23 | RJ-0403-12-08 | 49-53 | 310 |
| 3/4″ | 7/8″-14UNF-2A | 31.75 | 19.30 | 12.30 | 9.70 | 19.23 | RJ-0403-12-10 | 77-85 | 240 |
| 3/4″ | 1-1/16″-12UN-2A | 31.75 | 21.90 | 15.50 | 9.70 | 19.23 | RJ-0403-12-12 | 107-119 | 240 |
| 7/8″ | 1-3/16″-12UN-2A | 34.92 | 22.60 | 18.30 | 9.70 | 22.40 | RJ-0403-14-14 | 127-140 | 210 |
| 1″ | 1-1/16″-12UN-2A | 34.92 | 21.90 | 15.50 | 9.70 | 25.58 | RJ-0403-16-12 | 107-119 | 240 |
| 1″ | 1-5/16″-12UN-2A | 34.92 | 23.10 | 21.50 | 9.70 | 25.58 | RJ-0403-16-16 | 147-154 | 210 |
| 1″ | 1-5/8″-12UN-2A | 42.88 | 24.30 | 27.50 | 11.70 | 25.58 | RJ-0403-16-20 | 172-181 | 170 |
| 1-1/4″ | 1-5/16″-12UN-2A | 42.88 | 23.10 | 21.50 | 11.70 | 31.95 | RJ-0403-20-16 | 147-154 | 210 |
| 1-1/4″ | 1-5/8″-12UN-2A | 42.88 | 24.30 | 27.50 | 11.70 | 31.95 | RJ-0403-20-20 | 172-181 | 170 |
| 1-1/4″ | 1-7/8″-12UN-2A | 50.80 | 27.50 | 33.50 | 13.50 | 31.95 | RJ-0403-20-24 | 215-226 | 140 |
| 1-1/2″ | 1-5/8″-12UN-2A | 50.80 | 24.30 | 27.50 | 13.50 | 38.30 | RJ-0403-24-20 | 172-181 | 170 |
| 1-1/2″ | 1-7/8″-12UN-2A | 50.80 | 27.50 | 33.50 | 13.50 | 38.30 | RJ-0403-24-24 | 215-226 | 140 |
| 2″ | 2-1/2″-12UN-2A | 66.67 | 33.90 | 45.20 | 17.30 | 51.00 | RJ-0403-32-32 | 332-350 | 105 |
