Description

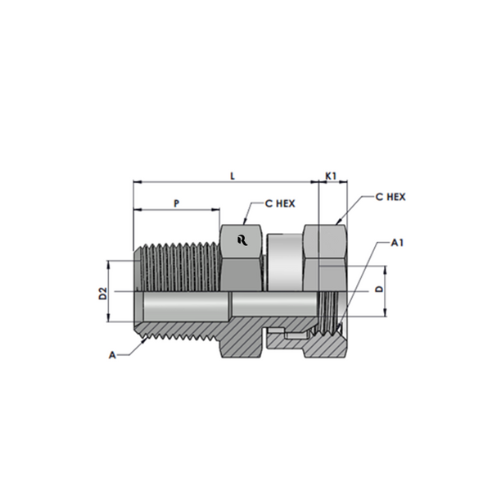

| Tube O.D. | A THREAD | A1 THREAD | C Hex | L Length | P Length | K1 | D DRILL | D2 DRILL | Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 1/8″-27NPTF-2 | 1/8″-27NPSM | 14.28 | 23.90 | 9.10 | 3.00 | 4.80/2.80 | 3.30 | RJ-1404-02-02 | 12-13 | 345 |
| 3/8″ | 1/4″-18NPTF-2 | 1/4″-18NPSM | 17.46 | 31.20 | 14.20 | 4.30 | 5.80/5.30 | 7.10 | RJ-1404-04-04 | 18-19 | 345 |
| 3/8″ | 1/4″-18NPTF-2 | 1/4″-18NPSM | 20.63 | 37.30 | 14.20 | 4.80 | 9.10/8.10 | 7.10 | RJ-1404-04-06 | 18-19 | 345 |
| 1/2″ | 3/8″-18NPTF-2 | 3/8″-18NPSM | 19.05 | 33.00 | 14.20 | 4.30 | 5.80/5.30 | 10.30 | RJ-1404-06-04 | 22-24 | 345 |
| 1/2″ | 3/8″-18NPTF-2 | 3/8″-18NPSM | 22.22 | 33.00 | 14.20 | 4.80 | 9.10/8.10 | 10.30 | RJ-1404-06-06 | 22-24 | 345 |
| 1/2″ | 3/8″-18NPTF-2 | 3/8″-18NPSM | 25.40 | 36.00 | 14.20 | 6.60 | 12.20/11.20 | 10.30 | RJ-1404-06-08 | 22-24 | 345 |
| 5/8″ | 1/2″-14NPTF-2 | 1/2″-14NPSM | 22.22 | 39.30 | 19.00 | 4.30 | 5.80/5.30 | 13.50 | RJ-1404-08-04 | 45-49 | 210 |
| 5/8″ | 1/2″-14NPTF-2 | 1/2″-14NPSM | 25.40 | 39.60 | 19.00 | 4.80 | 9.10/8.10 | 13.50 | RJ-1404-08-06 | 45-49 | 210 |
| 5/8″ | 1/2″-14NPTF-2 | 1/2″-14NPSM | 25.40 | 40.90 | 19.00 | 6.60 | 12.20/11.20 | 13.50 | RJ-1404-08-08 | 45-49 | 210 |
| 5/8″ | 1/2″-14NPTF-2 | 1/2″-14NPSM | 31.75 | 44.20 | 19.00 | 6.40 | 16.80/15.50 | 13.50 | RJ-1404-08-12 | 45-49 | 210 |
| 3/4″ | 3/4″-14NPTF-2 | 3/4″-14NPSM | 28.58 | 41.90 | 19.00 | 6.60 | 12.20/11.20 | 18.30 | RJ-1404-12-08 | 65-72 | 170 |
| 3/4″ | 3/4″-14NPTF-2 | 3/4″-14NPSM | 31.75 | 44.50 | 19.00 | 8.40 | 16.80/15.20 | 18.30 | RJ-1404-12-12 | 65-72 | 170 |
| 1″ | 1″-11-1/2NPTF-2 | 1″-11-1/2NPSM | 38.10 | 50.80 | 23.90 | 8.40 | 22.40/19.80 | 23.80 | RJ-1404-16-16 | 129-141 | 140 |
| 1-1/4″ | 1-1/4″-11-1/2NPTF-2 | 1-1/4″-11-1/2NPSM | 47.63 | 53.30 | 24.60 | 10.20 | 29.50/25.70 | 31.75 | RJ-1404-20-20 | 160-176 | 80 |
| 1-1/2″ | 1-1/2″-11-1/2NPTF-2 | 1-1/2″-11-1/2NPSM | 53.98 | 58.70 | 25.40 | 10.20 | 31.80 | 34.50 | RJ-1404-24-24 | 321-462 | 70 |
| 2″ | 2″-11-1/2NPTF-2 | 2″-11-1/2NPSM | 66.38 | 62.50 | 26.20 | 10.20 | 43.70 | 45.50 | RJ-1404-32-32 | 420-462 | 70 |
