Description

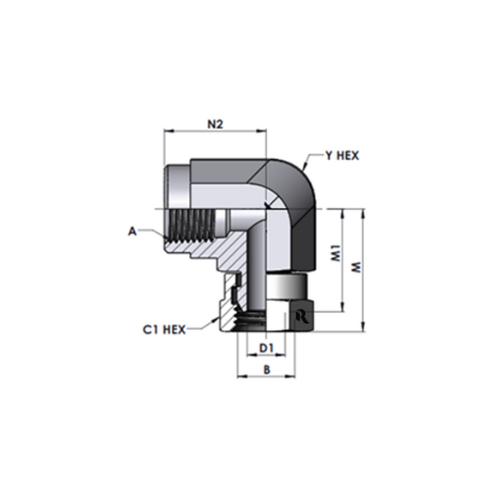

| A THREAD | B THREAD | Hex | N2 Length | M1 Length | M Length | D1 DRILL | Hex | Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8″-27NPTF-2 | 1/8″-27NPSM | 14.27 | 12.70 | 15.75 | 19.30 | 3.80 | 14.27 | RJ-1502-02-02 | 12-13 | 345 |
| 1/4″-18NPTF-2 | 1/4″-18NPSM | 19.05 | 17.53 | 19.30 | 24.13 | 5.60 | 17.48 | RJ-1502-04-04 | 18-19 | 345 |
| 3/8″-18NPTF-2 | 3/8″-18NPSM | 22.23 | 19.05 | 19.56 | 24.89 | 8.60 | 22.23 | RJ-1502-06-06 | 22-24 | 275 |
| 1/2″-14NPTF-2 | 1/2″-14NPSM | 26.97 | 23.88 | 21.08 | 28.19 | 11.70 | 25.4 | RJ-1502-08-08 | 45-49 | 210 |
| 3/4″-14NPTF-2 | 3/4″-14NPSM | 33.32 | 25.40 | 24.38 | 33.27 | 16.10 | 31.75 | RJ-1502-12-12 | 65-72 | 170 |
| 1″-11-1/2NPTF-2 | 1″-11-1/2NPSM | 41.28 | 30.23 | 29.97 | 38.86 | 21.10 | 38.1 | RJ-1502-16-16 | 129-141 | 140 |
| 1-1/4″-11-1/2NPTF-2 | 1-1/4″-11-1/2NPSM | 47.63 | 36.58 | 31.24 | 41.91 | 27.60 | 47.63 | RJ-1502-20-20 | 160-176 | 80 |
| 1-1/2″-11-1/2NPTF-2 | 1-1/2″-11-1/2NPSM | 65.07 | 37.08 | 37.08 | 47.75 | 33.50 | 53.98 | RJ-1502-24-24 | 321-353 | 70 |
