Description

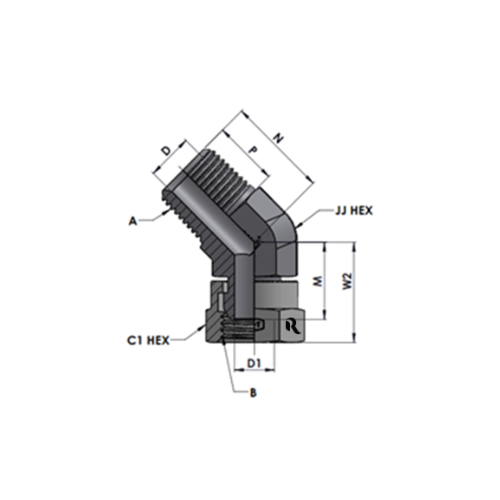

| Tube O.D.D | A THREAD | B THREAD | JJ Hex | N Length | P Length | D DRILL | M Length | W2 Length | D1 DRILL | C1 Hex | Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 1/8″-27NPTF-2 | 1/8″-27NPSM | 11.11 | 18.50 | 9.70 | 4.80 | 17.80 | 22.40 | 3.30 | 14.28 | RJ-1503-02-02 | 12-13 | 345 |
| 3/8″ | 1/4″-18NPTF-2 | 1/4″-18NPSM | 14.30 | 25.40 | 14.20 | 7.10 | 22.35 | 27.00 | 5.60 | 17.46 | RJ-1503-04-04 | 18-19 | 345 |
| 1/2″ | 3/8″-18NPTF-2 | 3/8″-18NPSM | 19.00 | 28.40 | 14.20 | 10.30 | 25.15 | 31.20 | 8.40 | 22.23 | RJ-1503-06-06 | 22-24 | 275 |
| 5/8″ | 1/2″-14NPTF-2 | 1/2″-14NPSM | 22.22 | 36.60 | 19.00 | 13.50 | 28.20 | 32.50 | 11.90 | 25.40 | RJ-1503-08-08 | 45-49 | 210 |
| 3/4″ | 3/4″-14NPTF-2 | 3/4″-14NPSM | 27.00 | 39.60 | 19.00 | 18.30 | 33.00 | 36.10 | 16.50 | 31.75 | RJ-1503-12-12 | 65-72 | 170 |
| 1″ | 1″-11-1/2NPTF-2 | 1″-11-1/2NPSM | 38.10 | 39.60 | 23.90 | 21.10 | 39.60 | 38.40 | 21.10 | 38.10 | RJ-1503-16-16 | 129-141 | 140 |
| 1-1/4″ | 1-1/4″-11-1/2NPTF-2 | 1-1/4″-11-1/2NPSM | 47.63 | 475.00 | 24.60 | 28.40 | 47.00 | 46.00 | 28.40 | 47.63 | RJ-1503-20-20 | 160-176 | 80 |
| 1-1/2″ | 1-1/2″-11-1/2NPTF-2 | 1-1/2″-11-1/2NPSM | 53.98 | 51.50 | 25.40 | 34.50 | 52.10 | 49.30 | 34.50 | 53.98 | RJ-1503-24-24 | 321-353 | 70 |
| 2″ | 2″-11-1/2NPTF-2 | 2″-11-1/2NPSM | 66.68 | 58.70 | 26.20 | 45.50 | 61.00 | 52.30 | 45.50 | 66.68 | RJ-1503-32-32 | 420-462 | 70 |
