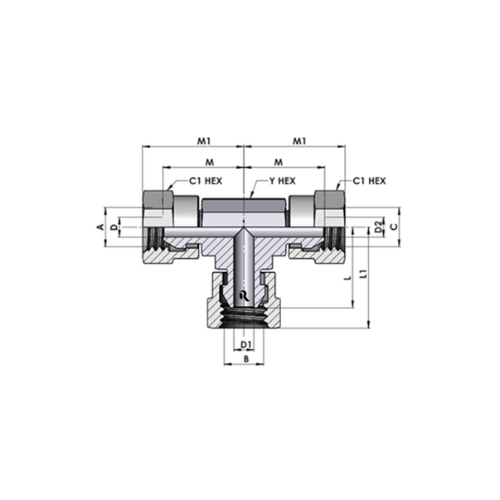

RJ1603-00-00-00 Series FPS-FPS-FPS TEE
Description
| A THREAD |
B THREAD |
C THREAD |
Hex |
Hex |
Length |
Length |
Length |
L1 Length |
D DRILL |
D1 DRILL |
D2 DRILL |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″-27NPSM |
1/8″-27NPSM |
1/8″-27NPSM |
11.11 |
14.27 |
17.80 |
21.30 |
21.30 |
17.80 |
3.80 |
3.80 |
3.80 |
RJ-1603-02-02-02 |
12-13 |
345 |
| 1/4″-18NPSM |
1/4″-18NPSM |
1/4″-18NPSM |
14.27 |
17.47 |
22.30 |
27.10 |
27.10 |
22.30 |
5.50 |
5.50 |
5.50 |
RJ-1603-04-04-04 |
18-19 |
345 |
| 3/8″-18NPSM |
3/8″-18NPSM |
3/8″-18NPSM |
19.05 |
22.22 |
25.10 |
30.50 |
30.50 |
25.10 |
8.60 |
8.60 |
8.60 |
RJ-1603-06-06-06 |
22-24 |
275 |
| 1/2″-14NPSM |
1/2″-14NPSM |
1/2″-14NPSM |
19.05 |
25.40 |
28.10 |
35.30 |
35.30 |
28.10 |
11.70 |
11.70 |
11.70 |
RJ-1603-08-08-08 |
45-49 |
210 |
| 3/4″-14NPSM |
3/4″-14NPSM |
3/4″-14NPSM |
26.97 |
31.75 |
33.00 |
41.90 |
41.90 |
33.00 |
16.10 |
16.10 |
16.10 |
RJ-1603-12-12-12 |
65-72 |
170 |
| 1″-11-1/2NPSM |
1″-11-1/2NPSM |
1″-11-1/2NPSM |
33.32 |
38.10 |
39.10 |
48.00 |
48.00 |
39.10 |
21.10 |
21.10 |
21.10 |
RJ-1603-16-16-16 |
129-141 |
140 |
| 1-1/2″-11-1/2NPSM |
1-1/2″-11-1/2NPSM |
1-1/2″-11-1/2NPSM |
41.27 |
47.62 |
43.90 |
54.60 |
54.60 |
43.90 |
27.60 |
27.60 |
27.60 |
RJ-1603-20-20-20 |
160-176 |
80 |
