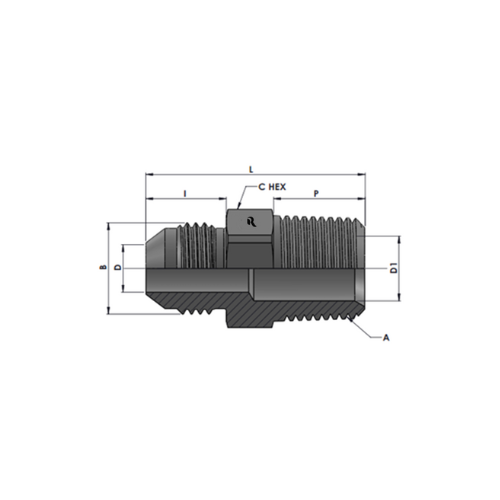

RJ2404-00-00 Series MJ-MP STRAIGHT
Description
| Tube O.D |
A THREAD |
B THREAD |
Hex |
L Length |
I |
D DRILL |
P |
D1 DRILL |
Part Number |
Working pressure in Bar |
| 1/4″ |
1/8″-27NPTF-2 |
7/16″-20UNF-2A |
12.70 |
30.99 |
14.00 |
4.40 |
9.70 |
4.80 |
RJ-2404-04-02 |
345 |
| 1/4″ |
1/4″-18NPTF-2 |
7/16″-20UNF-2A |
14.29 |
36.06 |
14.00 |
4.40 |
14.20 |
7.00 |
RJ-2404-04-04 |
345 |
| 1/4″ |
3/8″-18NPTF-2 |
7/16″-20UNF-2A |
19.00 |
36.00 |
14.00 |
4.40 |
14.20 |
10.30 |
RJ-2404-04-06 |
210 |
| 3/8″ |
1/4″-18NPTF-2 |
9/16″-18UNF-2A |
15.87 |
36.32 |
14.10 |
7.50 |
14.20 |
7.13 |
RJ-2404-06-04 |
345 |
| 3/8″ |
3/8″-18NPTF-2 |
9/16″-18UNF-2A |
19.05 |
36.30 |
14.10 |
7.50 |
14.20 |
10.30 |
RJ-2404-06-06 |
210 |
| 3/8″ |
1/2″-14NPTF-2 |
9/16″-18UNF-2A |
22.20 |
42.93 |
14.10 |
7.50 |
19.00 |
13.50 |
RJ-2404-06-08 |
210 |
| 1/2″ |
1/4″-18NPTF-2 |
3/4″-16UNF-2A |
20.63 |
38.90 |
16.70 |
9.90 |
14.20 |
7.10 |
RJ-2404-08-04 |
310 |
| 1/2″ |
3/8″-18NPTF-2 |
3/4″-16UNF-2A |
20.63 |
38.86 |
16.70 |
9.90 |
14.20 |
10.30 |
RJ-2404-08-06 |
210 |
| 1/2″ |
1/2″-14NPTF-2 |
3/4″-16UNF-2A |
22.22 |
45.50 |
16.70 |
9.90 |
19.00 |
13.50 |
RJ-2404-08-08 |
210 |
| 1/2″ |
3/4″-14NPTF-2 |
3/4″-16UNF-2A |
28.58 |
46.99 |
16.70 |
9.90 |
19.00 |
18.30 |
RJ-2404-08-12 |
170 |
| 5/8″ |
3/8″-18NPTF-2 |
7/8″-14UNF-2A |
23.81 |
43.20 |
19.30 |
12.30 |
14.20 |
10.30 |
RJ-2404-10-06 |
240 |
| 5/8″ |
1/2″-14NPTF-2 |
7/8″-14UNF-2A |
23.81 |
48.00 |
19.30 |
12.30 |
19.00 |
13.50 |
RJ-2404-10-08 |
240 |
| 5/8″ |
3/4″-14NPTF-2 |
7/8″-14UNF-2A |
28.58 |
49.53 |
19.30 |
12.30 |
19.00 |
18.26 |
RJ-2404-10-12 |
170 |
| 5/8″ |
1″-11-1/2NPTF-2 |
7/8″-14UNF-2A |
34.90 |
54.60 |
19.30 |
12.30 |
23.90 |
23.80 |
RJ-2404-10-16 |
140 |
| 3/4″ |
1/2″-14NPTF-2 |
1-1/16″-12UN-2A |
28.58 |
52.30 |
21.90 |
15.50 |
19.00 |
13.50 |
RJ-2404-12-08 |
240 |
| 3/4″ |
3/4″-14NPTF-2 |
1-1/16″-12UN-2A |
28.58 |
52.30 |
21.90 |
15.50 |
19.00 |
18.26 |
RJ-2404-12-12 |
170 |
| 3/4″ |
1″-11-1/2NPTF-2 |
1-1/16″-12UN-2A |
34.92 |
57.20 |
21.90 |
15.50 |
23.90 |
23.80 |
RJ-2404-12-16 |
170 |
| 1″ |
3/4″-14NPTF-2 |
1-5/16″-12UN-2A |
34.93 |
53.60 |
23.10 |
21.40 |
19.00 |
18.26 |
RJ-2404-16-12 |
170 |
| 1″ |
1″-11-1/2NPTF-2 |
1-5/16″-12UN-2A |
34.93 |
58.40 |
23.10 |
21.40 |
23.90 |
23.80 |
RJ-2404-16-16 |
140 |
| 1″ |
1-1/4″-11-1/2NPTF-2 |
1-5/16″-12UN-2A |
42.86 |
61.00 |
23.10 |
21.40 |
24.60 |
31.75 |
RJ-HT2404-16-20 |
80 |
| 1-1/4″ |
1″-11-1/2NPTF-2 |
1-5/8″-12UN-2A |
42.86 |
61.50 |
24.30 |
27.50 |
23.90 |
23.80 |
RJ-2404-20-16 |
140 |
| 1-1/4″ |
1-1/4″-11-1/2NPTF-2 |
1-5/8″-12UN-2A |
42.86 |
62.20 |
24.30 |
27.40 |
24.60 |
31.80 |
RJ-2404-20-20 |
80 |
| 1-1/2″ |
1-1/2″-11-1/2NPTF-2 |
1-7/8″-12UN-2A |
50.80 |
68.10 |
27.50 |
33.30 |
25.40 |
38.00 |
RJ-2404-24-24 |
70 |
| 2″ |
2″-11-1/2NPTF-2 |
2-1/2″-12UN-2A |
66.68 |
79.00 |
33.90 |
45.20 |
26.20 |
49.00 |
RJ-2404-32-32 |
70 |
