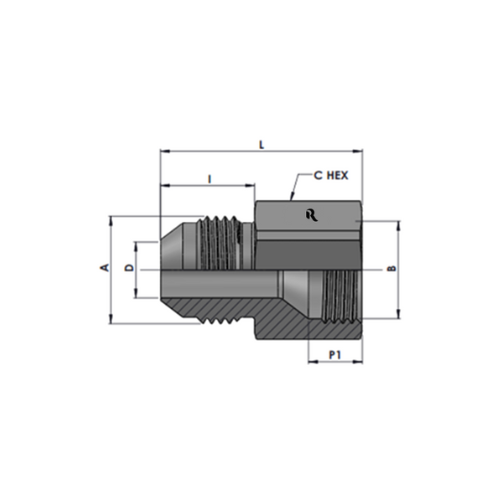

RJ2405-00-00 Series MJ-FP STRAIGHT
Description
| Tube O.D |
A THREAD |
B THREAD |
Hex |
L2 Length |
I |
D DRILL |
P1 |
Part Number |
Working pressure in Bar |
| 1/4″ |
1/8″-27NPTF-2 |
7/16″-20UNF-2A |
14.28 |
30.25 |
14.00 |
4.40 |
11.70 |
RJ-2405-04-02 |
345 |
| 1/4″ |
1/4″-18NPTF-2 |
7/16″-20UNF-2A |
19.05 |
35.31 |
14.00 |
4.40 |
16.50 |
RJ-2405-04-04 |
275 |
| 1/4″ |
3/8″-18NPTF-2 |
7/16″-20UNF-2A |
22.22 |
36.83 |
14.00 |
4.40 |
17.30 |
RJ-2405-04-06 |
210 |
| 1/4″ |
1/2″-14NPTF-2 |
7/16″-20UNF-2A |
28.58 |
42.67 |
14.00 |
4.40 |
22.90 |
RJ-2405-04-08 |
210 |
| 3/8″ |
1/4″-18NPTF-2 |
9/16″-18UNF-2A |
19.05 |
35.56 |
14.10 |
7.50 |
16.50 |
RJ-2405-06-04 |
275 |
| 3/8″ |
3/8″-18NPTF-2 |
9/16″-18UNF-2A |
22.22 |
37.08 |
14.10 |
7.50 |
17.00 |
RJ-2405-06-06 |
210 |
| 3/8″ |
1/2″-14NPTF-2 |
9/16″-18UNF-2A |
28.58 |
42.93 |
14.10 |
7.50 |
22.90 |
RJ-2405-06-08 |
210 |
| 3/8″ |
3/4″-14NPTF-2 |
9/16″-18UNF-2A |
34.93 |
44.45 |
14.10 |
7.50 |
23.10 |
RJ-2405-06-12 |
170 |
| 1/2″ |
1/4″-18NPTF-2 |
3/4″-16UNF-2A |
20.65 |
39.37 |
16.70 |
9.90 |
19.00 |
RJ-2405-08-04 |
310 |
| 1/2″ |
3/8″-18NPTF-2 |
3/4″-16UNF-2A |
22.22 |
39.62 |
16.70 |
9.90 |
17.00 |
RJ-2405-08-06 |
210 |
| 1/2″ |
1/2″-14NPTF-2 |
3/4″-16UNF-2A |
28.58 |
45.47 |
16.70 |
9.90 |
18.00 |
RJ-2405-08-08 |
210 |
| 5/8″ |
1/4″-18NPTF-2 |
7/8″-14UNF-2A |
23.81 |
42.16 |
19.30 |
12.30 |
17.00 |
RJ-2405-10-04 |
240 |
| 5/8″ |
3/8″-18NPTF-2 |
7/8″-14UNF-2A |
23.81 |
42.40 |
19.30 |
12.30 |
17.30 |
RJ-2405-10-06 |
210 |
| 5/8″ |
1/2″-14NPTF-2 |
7/8″-14UNF-2A |
28.58 |
48.00 |
19.30 |
12.30 |
22.90 |
RJ-2405-10-08 |
210 |
| 5/8″ |
3/4″-14NPTF-2 |
7/8″-14UNF-2A |
34.93 |
49.50 |
19.30 |
12.30 |
23.10 |
RJ-2405-10-12 |
170 |
| 3/4″ |
3/4″-14NPTF-2 |
1-1/16″-12UN-2A |
34.93 |
52.32 |
21.90 |
15.50 |
23.10 |
RJ-2405-12-12 |
170 |
