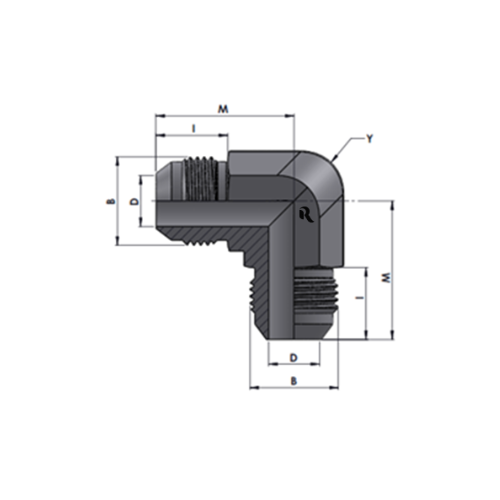

RJ2500-00-00 Series MJ-MJ 90°
Description
| Tube O.D |
B THREAD |
Hex |
M |
I |
D DRILL |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″ |
5/16″-24UNF-2A |
11.10 |
19.60 |
11.40 |
1.60 |
RJ-2500-02-02 |
8-9 |
345 |
| 3/16″ |
3/8″-24UNF-2A |
11.10 |
21.10 |
12.20 |
3.20 |
RJ-2500-03-03 |
11-12 |
345 |
| 1/4″ |
7/16″-20UNF-2A |
11.10 |
22.60 |
14.00 |
4.40 |
RJ-2500-04-04 |
15-16 |
345 |
| 5/16″ |
1/2″-20UNF-2A |
14.30 |
24.10 |
14.00 |
6.00 |
RJ-2500-05-05 |
19-21 |
345 |
| 3/8″ |
9/16″-18UNF-2A |
14.30 |
26.90 |
14.10 |
7.50 |
RJ-2500-06-06 |
24-28 |
345 |
| 1/2″ |
3/4″-16UNF-2A |
19.00 |
31.80 |
16.70 |
9.90 |
RJ-2500-08-08 |
49-53 |
310 |
| 5/8″ |
7/8″-14UNF-2A |
22.20 |
36.80 |
19.30 |
12.30 |
RJ-2500-10-10 |
77-85 |
240 |
| 3/4″ |
1-1/16″-12UN-2A |
27.00 |
42.20 |
21.90 |
15.50 |
RJ-2500-12-12 |
107-119 |
240 |
| 7/8″ |
1-3/16″-12UN-2A |
33.30 |
45.70 |
22.60 |
18.30 |
RJ-2500-14-14 |
127-140 |
210 |
| 1″ |
1-5/16″-12UN-2A |
33.30 |
46.00 |
23.10 |
21.50 |
RJ-2500-16-16 |
147-154 |
210 |
| 1-1/4″ |
1-5/8″-12UN-2A |
41.30 |
52.30 |
24.30 |
27.50 |
RJ-2500-20-20 |
172-181 |
170 |
| 1-1/2″ |
1-7/8″-12UN-2A |
47.60 |
59.20 |
27.50 |
33.50 |
RJ-2500-24-24 |
215-226 |
140 |
| 2″ |
2-1/2″-12UN-2A |
63.50 |
77.70 |
33.90 |
45.20 |
RJ-2500-32-32 |
332-350 |
105 |
