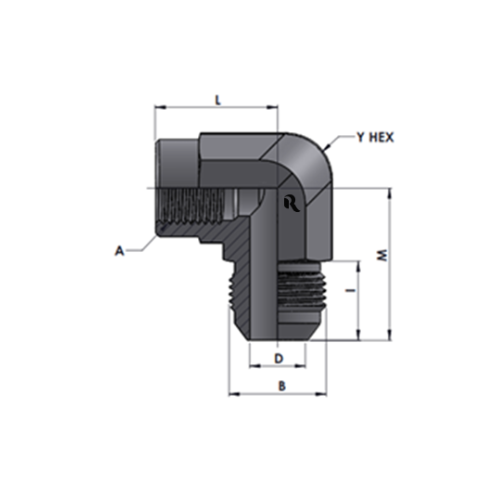

RJ2502-00-00 Series MJ-FP 90°
Description
| Tube O.D |
A THREAD |
B THREAD |
Hex |
M |
L |
I |
D DRILL |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″ |
1/8″-27NPTF-2 |
5/16″-24UNF-2A |
14.27 |
25.40 |
16.80 |
11.40 |
1.60 |
RJ-2502-02-02 |
8-9 |
345 |
| 1/4″ |
1/4″-18NPTF-2 |
7/16″-20UNF-2A |
19.05 |
31.00 |
22.40 |
14.00 |
4.40 |
RJ-2502-04-04 |
15-16 |
310 |
| 3/8″ |
3/8″-18NPTF-2 |
9/16″-18UNF-2A |
22.23 |
33.30 |
25.90 |
14.10 |
7.50 |
RJ-2502-06-06 |
24-28 |
275 |
| 1/2″ |
1/2″-14NPTF-2 |
3/4″-16UNF-2A |
26.97 |
38.60 |
31.20 |
16.70 |
9.90 |
RJ-2502-08-08 |
49-53 |
210 |
| 3/4″ |
3/4″-14NPTF-2 |
1-1/16″-12UN-2A |
33.32 |
48.00 |
34.50 |
21.90 |
15.50 |
RJ-2502-12-12 |
107-119 |
170 |
| 1″ |
1″-11-1/2NPTF-2 |
1-5/16″-12UN-2A |
41.28 |
55.10 |
41.10 |
23.10 |
21.40 |
RJ-2502-16-16 |
147-154 |
140 |
| 1-1/4″ |
1-1/4″-11-1/2NPTF-2 |
1-5/8″-12UN-2A |
47.63 |
59.20 |
43.20 |
24.30 |
27.40 |
RJ-2502-20-20 |
172-181 |
80 |
| 1-1/2″ |
1-1/2″-11-1/2NPTF-2 |
1-7/8″-12UN-2A |
65.07 |
73.40 |
52.80 |
27.50 |
33.30 |
RJ-2502-24-24 |
215-226 |
70 |
| 2″ |
2″-11-1/2NPTF-2 |
2″-12UN-2A |
71.42 |
83.80 |
60.70 |
33.90 |
45.00 |
RJ-2502-32-32 |
332-350 |
70 |
