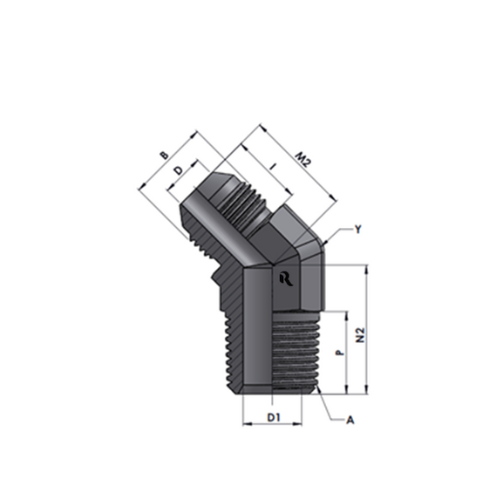

RJ2503-00-00 Series MJ-MP 45°
Description
| Tube O.D |
B THREAD |
A THREAD |
Hex |
M2 |
N2 |
I |
P |
D DRILL |
D1 DRILL |
Part Number |
Working pressure in Bar |
| 1/4″ |
7/16″-20UNF-2A |
1/4″-18NPTF-2 |
14.30 |
20.80 |
21.80 |
14.00 |
14.20 |
4.40 |
7.00 |
RJ-2503-04-04 |
275 |
| 3/8″ |
9/16″-18UNF-2A |
3/8″-18NPTF-2 |
19.05 |
22.00 |
24.10 |
14.10 |
14.20 |
7.50 |
10.30 |
RJ-2503-06-06 |
210 |
| 1/2″ |
3/4″-16UNF-2A |
1/2″-14NPTF-2 |
22.22 |
24.90 |
29.70 |
16.70 |
19.00 |
9.90 |
13.50 |
RJ-2503-08-08 |
210 |
| 3/4″ |
1-1/16″-12UN-2A |
3/4″-14NPTF-2 |
26.97 |
32.50 |
30.48 |
21.90 |
19.00 |
15.50 |
18.30 |
RJ-2503-12-12 |
170 |
| 1″ |
1-5/16″-12UN-2A |
1″-11-1/2NPTF-2 |
33.32 |
37.33 |
37.60 |
23.10 |
23.90 |
21.50 |
23.80 |
RJ-2503-16-16 |
140 |
| 1-1/4″ |
1-5/8″-12UN-2A |
1-1/4″-11-1/2NPTF-2 |
41.27 |
40.40 |
42.40 |
24.30 |
24.60 |
27.50 |
31.75 |
RJ-2503-20-20 |
80 |
| 1-1/2″ |
1-7/8″-12UN-2A |
1-1/2″-11-1/2NPTF-2 |
47.62 |
45.20 |
45.00 |
27.50 |
25.40 |
33.50 |
38.00 |
RJ-2503-24-24 |
70 |
| 2″ |
2-1/2″-12UN-2A |
2″-11-1/2NPTF-2 |
63.50 |
56.40 |
53.60 |
33.90 |
26.20 |
45.20 |
49.00 |
RJ-2503-32-32 |
70 |
