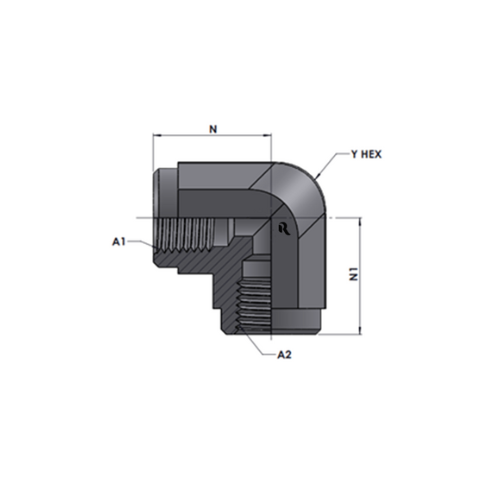

RJ5504-00-00 Series FP-FP 90° STREET ELBOW
Description
| A THREAD |
A1 THREAD |
Hex |
N |
N1 |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″-18NPTF-2 |
1/4″-18NPTF-2 |
19.05 |
22.40 |
22.40 |
RJ-5504-04-04 |
18-19 |
345 |
| 3/8″-18NPTF-2 |
3/8″-18NPTF-2 |
22.22 |
25.90 |
25.90 |
RJ-5504-06-06 |
22-24 |
275 |
| 1/2″-14NPTF-2 |
1/2″-14NPTF-2 |
26.97 |
31.20 |
31.20 |
RJ-5504-08-08 |
45-49 |
210 |
| 3/4″-14NPTF-2 |
3/4″-14NPTF-2 |
33.32 |
34.50 |
34.50 |
RJ-5504-12-12 |
65-72 |
170 |
| 1″-11-1/2NPTF-2 |
1″-11-1/2NPTF-2 |
41.27 |
41.10 |
41.10 |
RJ-5504-16-16 |
129-141 |
140 |
| 1-1/4″-11-1/2NPTF-2 |
1-1/4″-11-1/2NPTF-2 |
47.62 |
43.10 |
43.10 |
RJ-5504-20-20 |
160-176 |
80 |
| 1-1/2″-11-1/2NPTF-2 |
1-1/2″-11-1/2NPTF-2 |
65.07 |
52.80 |
52.80 |
RJ-5504-24-24 |
321-353 |
70 |
