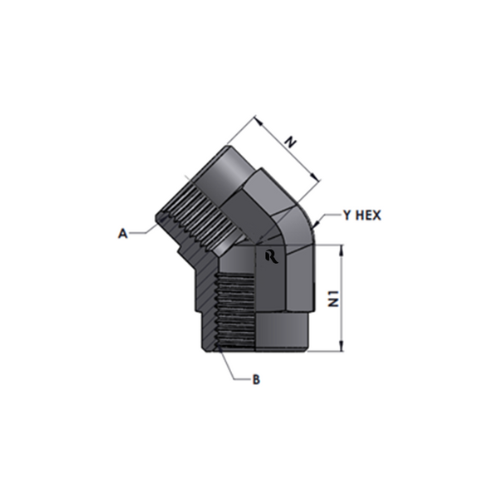

RJ5505-00-00 Series FP-FP 45° STREET ELBOW
Description
| A THREAD |
B THREAD |
Hex |
N |
N1 |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″-27NPTF-2 |
1/8″-27NPTF-2 |
14.27 |
12.70 |
12.70 |
RJ-5505-02-02 |
18-19 |
345 |
| 1/4″-18NPTF-2 |
1/4″-18NPTF-2 |
19.05 |
17.50 |
17.50 |
RJ-5505-04-04 |
22-24 |
275 |
| 3/8″-18NPTF-2 |
3/8″-18NPTF-2 |
22.23 |
19.10 |
19.10 |
RJ-5505-06-06 |
45-49 |
210 |
| 1/2″-14NPTF-2 |
1/2″-14NPTF-2 |
26.97 |
23.90 |
23.90 |
RJ-5505-08-08 |
65-72 |
170 |
| 3/4″-14NPTF-2 |
3/4″-14NPTF-2 |
33.32 |
25.40 |
25.40 |
RJ-5505-12-12 |
129-141 |
140 |
| 1″-11-1/2NPTF-2 |
1″-11-1/2NPTF-2 |
41.28 |
30.20 |
30.20 |
RJ-5505-16-16 |
160-176 |
80 |
| 1-1/4″-11-1/2NPTF-2 |
1-1/4″-11-1/2NPTF-2 |
47.63 |
36.60 |
36.60 |
RJ-5505-20-20 |
321-353 |
70 |
