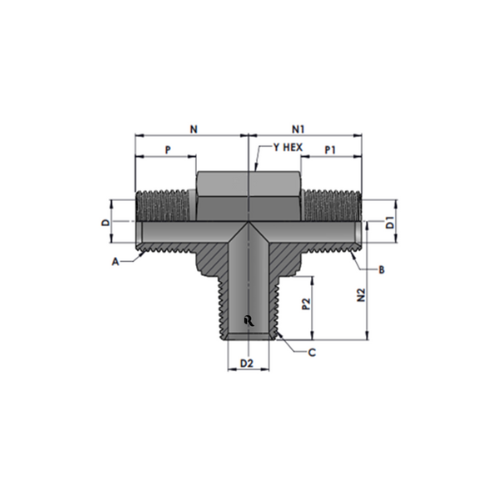

RJ5600-00-00-00 Series MP-MP-MP TEE
Description
| A THREAD |
B THREAD |
C THREAD |
Hex |
N |
N1 |
N2 |
P |
P1 |
P2 |
D |
D1 |
D2 |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″-27NPTF-2 |
1/8″-27NPTF-2 |
1/8″-27NPTF-2 |
11.13 |
19.80 |
19.80 |
19.80 |
9.70 |
9.70 |
9.70 |
4.5 |
4.5 |
4.5 |
RJ-5600-02-02-02 |
12-13 |
345 |
| 1/4″-18NPTF-2 |
1/4″-18NPTF-2 |
1/4″-18NPTF-2 |
14.27 |
27.70 |
27.70 |
27.70 |
14.20 |
14.20 |
14.20 |
7.1 |
7.1 |
7.1 |
RJ-5600-04-04-04 |
14-19 |
345 |
| 3/8″-18NPTF-2 |
3/8″-18NPTF-2 |
3/8″-18NPTF-2 |
19.05 |
31.00 |
31.00 |
31.00 |
14.20 |
14.20 |
14.20 |
10.3 |
10.3 |
10.3 |
RJ-5600-06-06-06 |
22-24 |
245 |
| 1/2″-14NPTF-2 |
1/2″-14NPTF-2 |
1/2″-14NPTF-2 |
22.23 |
37.30 |
37.30 |
37.30 |
19.00 |
19.00 |
19.00 |
13.5 |
13.5 |
13.5 |
RJ-5600-08-08-08 |
45-49 |
210 |
| 3/4″-14NPTF-2 |
3/4″-14NPTF-2 |
3/4″-14NPTF-2 |
26.97 |
40.40 |
40.40 |
40.40 |
19.00 |
19.00 |
19.00 |
18.3 |
18.3 |
18.3 |
RJ-5600-12-12-12 |
65-72 |
170 |
| 1″-11-1/2NPTF-2 |
1″-11-1/2NPTF-2 |
1″-11-1/2NPTF-2 |
33.32 |
50.00 |
50.00 |
50.00 |
23.90 |
23.90 |
23.90 |
23.8 |
23.8 |
23.8 |
RJ-5600-16-16-16 |
129-141 |
140 |
| 1-1/4″-11-1/2NPTF-2 |
1-1/4″-11-1/2NPTF-2 |
1-1/4″-11-1/2NPTF-2 |
41.25 |
60.50 |
60.50 |
60.50 |
24.60 |
24.60 |
24.60 |
31.8 |
31.8 |
31.8 |
RJ-5600-20-20-20 |
160-176 |
80 |
| 2″-11-1/2NPTF-2 |
2″-11-1/2NPTF-2 |
2″-11-1/2NPTF-2 |
63.5 |
76.20 |
76.20 |
76.20 |
24.40 |
24.40 |
24.40 |
49.23 |
49.23 |
49.23 |
RJ-5600-32-32-32 |
420-462 |
70 |
