RJ6400-L-00-00-O Series MJ-MORB STRAIGHT LONG

Description

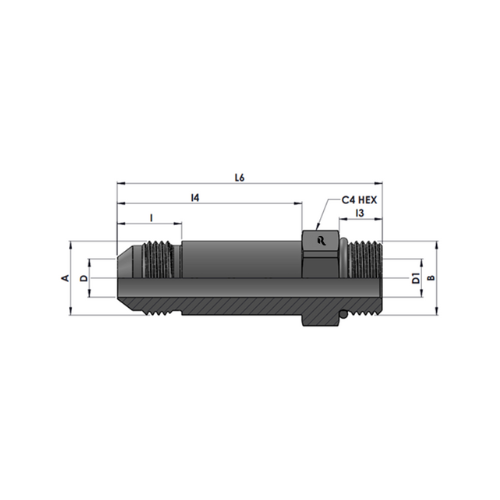

Tube O.D	A THREAD	B THREAD	Hex	L6 Length	I4	I	I3	D DRILL	D1 DRILL	Part Number	Working pressure in Bar
1/8″	5/16″-24UNF-2A	5/16″-24UNF-2A	11.11	45.50	29.70	11.40	7.54	1.60	1.60	RJ-6400-L-02-02	345
3/16″	3/8″-24UNF-2A	3/8″-24UNF-2A	12.70	47.50	31.80	12.20	7.54	3.20	3.20	RJ-6400-L-03-03	345
1/4″	7/16″-20UNF-2A	7/16″-20UNF-2A	14.28	52.80	35.30	14.00	9.14	4.40	4.40	RJ-6400-L-04-04	345
5/16″	1/2″-20UNF-2A	1/2″-20UNF-2A	15.88	54.40	36.80	14.00	9.14	6.00	6.00	RJ-6400-L-05-05	345
3/8″	9/16″-18UNF-2A	9/16″-18UNF-2A	17.46	58.70	39.60	14.10	9.93	7.50	7.50	RJ-6400-L-06-06	345
3/8″	9/16″-18UNF-2A	3/4″-16UNF-2A	22.22	66.00	39.60	14.10	11.13	7.50	9.90	RJ-6400-L-06-08	310
1/2″	3/4″-16UNF-2A	3/4″-16UNF-2A	22.23	68.60	47.80	16.70	11.13	9.90	9.90	RJ-6400-L-08-08	310
1/2″	3/4″-16UNF-2A	7/8″-14UNF-2A	25.40	74.67	50.00	16.70	12.70	9.90	12.30	RJ-6400-L-08-10	240
5/8″	7/8″-14UNF-2A	7/8″-14UNF-2A	25.40	77.20	53.10	19.30	12.70	12.30	12.30	RJ-6400-L-10-10	240
3/4″	1-1/16″-12UN-2A	1-1/16″-12UN-2A	31.75	91.70	63.50	21.90	15.09	15.50	15.50	RJ-6400-L-12-12	240
7/8″	1-3/16″-12UN-2A	1-3/16″-12UN-2A	34.93	96.50	68.30	22.60	15.09	18.30	18.30	RJ-6400-L-14-14	210
1″	1-5/16″-12UN-2A	1-5/16″-12UN-2A	38.10	101.10	72.10	23.10	15.09	21.50	21.50	RJ-6400-L-16-16	210
1-1/4″	1-5/8″-12UN-2A	1-5/8″-12UN-2A	47.63	119.10	88.10	24.30	15.09	27.50	27.50	RJ-6400-L-20-20	170
1-1/2″	1-7/8″-12UN-2A	1-7/8″-12UN-2A	53.98	131.30	98.60	27.50	15.09	33.50	33.50	RJ-6400-L-24-24	140
2″	2-1/2″-12UN-2A	2-1/2″-12UN-2A	60.33	159.80	122.90	33.90	15.09	45.20	45.20	RJ-6400-L-32-32	105
