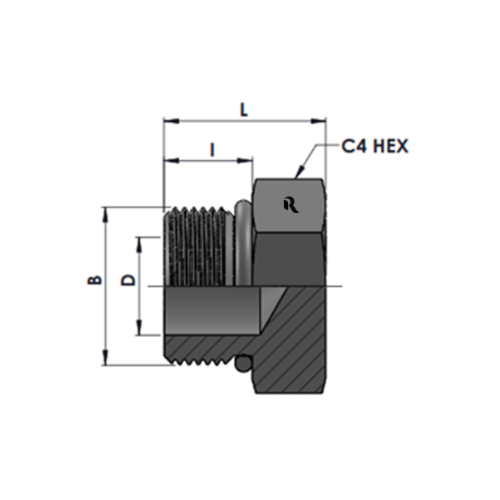

RJ6408-00-O Series MORB EXTERNAL HEX PLUG
Description
| Tube O.D |
B THREAD |
Hex |
L Length |
L |
D DRILL |
Part Number |
Torqu N-m |
Working pressure in Bar |
| 1/8″ |
5/16″-24UNF-2A |
11.11 |
15.20 |
7.54 |
2.40 |
RJ-6408-02-O |
8-9 |
345 |
| 3/16″ |
3/8″-24UNF-2A |
12.70 |
15.20 |
7.54 |
3.20 |
RJ-6408-03-O |
11-12 |
345 |
| 1/4″ |
7/16″-20UNF-2A |
14.28 |
17.00 |
9.14 |
5.20 |
RJ-6408-04-O |
18-20 |
345 |
| 5/16″ |
1/2″-20UNF-2A |
15.87 |
17.00 |
9.14 |
5.90 |
RJ-6408-05-O |
23-26 |
345 |
| 3/8″ |
9/16″-18UNF-2A |
17.46 |
18.50 |
9.93 |
7.50 |
RJ-6408-06-O |
29-33 |
275 |
| 1/2″ |
3/4″-16UNF-2A |
22.22 |
20.30 |
11.13 |
10.70 |
RJ-6408-08-O |
49-53 |
210 |
| 5/8″ |
7/8″-14UNF-2A |
25.40 |
23.60 |
12.70 |
12.70 |
RJ-6408-10-O |
59-64 |
210 |
| 3/4″ |
1-1/16″-12UN-2A |
31.75 |
27.70 |
15.09 |
16.70 |
RJ-6408-12-O |
93-102 |
170 |
| 7/8″ |
1-3/16″-12UN-2A |
34.92 |
27.70 |
15.09 |
18.70 |
RJ-6408-14-O |
122-134 |
170 |
| 1″ |
1-5/16″-12UN-2A |
38.10 |
28.40 |
15.09 |
22.20 |
RJ-HT6408-16-O |
151-166 |
140 |
| 1-1/4″ |
1-5/8″-12UN-2A |
47.62 |
30.50 |
15.09 |
27.80 |
RJ-6408-20-O |
198-218 |
80 |
| 1-1/2″ |
1-7/8″-12UN-2A |
53.97 |
32.30 |
15.09 |
34.10 |
RJ-408-24-O |
209-231 |
70 |
| 2″ |
2-1/2″-12UN-2A |
69.85 |
36.30 |
15.09 |
46.10 |
RJ-6408-32-O |
296-325 |
70 |
