RJ6501-00-00 Series MP-FJS 90°

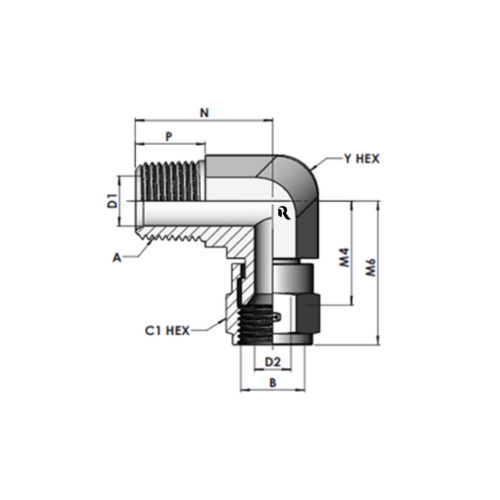

Description
| Tube O.D. |
A THREAD |
B THREAD |
Y Hex |
C2 Hex |
N |
M4 |
M6 |
p |
D1 Drill |
D2 Drill |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
1/4″-18NPTF-2 |
7/16″-20UNF-2A |
14.27 |
14.27 |
27.69 |
20.32 |
29.21 |
9.70 |
7.10 |
4.40 |
RJ-6501-04-04 |
18-19 |
345 |
| 3/8″ |
3/8″-18NPTF-2 |
9/16″-18UNF-2A |
19.05 |
17.47 |
31.00 |
23.10 |
32.70 |
14.20 |
10.30 |
7.50 |
RJ-6501-06-06 |
22-24 |
275 |
| 1/2″ |
1/2″-14NPTF-2 |
3/4″-16UNF-2A |
22.22 |
22.22 |
37.30 |
27.69 |
38.60 |
14.20 |
13.40 |
9.90 |
RJ-6501-08-08 |
45-49 |
210 |
| 3/4″ |
3/4″-14NPTF-2 |
1-1/16″-12UN-2A |
26.97 |
31.75 |
40.40 |
29.90 |
44.40 |
19.00 |
18.26 |
15.46 |
RJ-6501-12-12 |
65-72 |
170 |
| 1″ |
1″-11-1/2NPTF-2 |
1-5/16″-12UN-2A |
33.32 |
38.10 |
50.00 |
35.56 |
50.80 |
23.90 |
23.80 |
21.10 |
RJ-6501-16-16 |
129-141 |
140 |
| 1-1/4″ |
1-1/4″-11-1/2NPTF-2 |
1-5/8″-12UN-2A |
41.27 |
50.80 |
60.45 |
41.40 |
58.70 |
24.60 |
31.75 |
27.38 |
RJ-6501-20-20 |
160-176 |
80 |
| 1-1/2″ |
1-1/2″-11-1/2NPTF-2 |
1-7/8″-12UN-2A |
47.62 |
57.15 |
67.00 |
47.50 |
65.80 |
25.40 |
38.10 |
33.30 |
RJ-6501-24-24 |
321-353 |
70 |
| 2″ |
2″-11-1/2NPTF-2 |
2-1/2″-12UN-2A |
63.50 |
73.00 |
76.20 |
61.70 |
85.80 |
26.20 |
49.20 |
45.23 |
RJ-6501-24-24 |
420-462 |
70 |
