RJ6606-00-00-00 Series FJS-FJS-FJS TEE

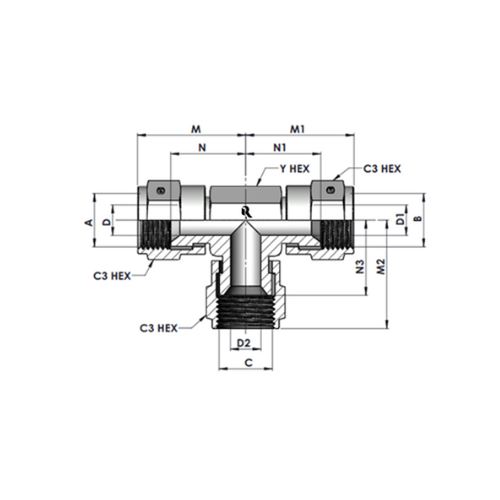

Description
| Tube O.D. |
A THREAD |
B THREAD |
C THREAD |
Y Hex |
C3 Hex |
M |
M1 |
M2 |
N |
N1 |
N2 |
D Drill |
D1 Drill |
D2 Drill |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
7/16″-20UNF-2B |
7/16″-20UNF-2B |
7/16″-20UNF-2B |
11.10 |
14.28 |
22.60 |
22.60 |
22.60 |
16.70 |
16.70 |
16.70 |
4.40 |
4.40 |
4.40 |
RJ-6606-04-04-04 |
18-20 |
345 |
| 3/8″ |
9/16″-18UNF-2B |
9/16″-18UNF-2B |
9/16″-18UNF-2B |
14.30 |
17.46 |
26.90 |
26.90 |
26.90 |
22.30 |
22.30 |
22.30 |
7.50 |
7.50 |
7.50 |
RJ-6606-06-06-06 |
29-33 |
275 |
| 1/2″ |
3/4″-16UNF-2B |
3/4″-16UNF-2B |
3/4″-16UNF-2B |
19.00 |
22.22 |
31.80 |
31.80 |
31.80 |
24.40 |
24.40 |
24.40 |
9.90 |
9.90 |
9.90 |
RJ-6606-08-08-08 |
49-53 |
210 |
| 5/8″ |
7/8″-14UNF-2B |
7/8″-14UNF-2B |
7/8″-14UNF-2B |
22.20 |
25.40 |
36.80 |
36.80 |
36.80 |
28.40 |
28.40 |
28.40 |
12.30 |
12.30 |
12.30 |
RJ-6606-10-10-10 |
59-64 |
210 |
| 3/4″ |
1-1/16″-12UN-2B |
1-1/16″-12UN-2B |
1-1/16″-12UN-2B |
27.00 |
31.75 |
42.20 |
42.20 |
42.20 |
30.10 |
30.10 |
30.10 |
15.50 |
15.50 |
15.50 |
RJ-6606-12-12-12 |
93-102 |
170 |
| 1″ |
1-5/16″-12UN-2B |
1-5/16″-12UN-2B |
1-5/16″-12UN-2B |
33.30 |
41.28 |
46.00 |
46.00 |
46.00 |
37.50 |
37.50 |
37.50 |
21.40 |
21.40 |
21.40 |
RJ-6606-16-16-16 |
151-166 |
140 |
