RJ6801-00-00 Series MJ-MAORB 90°

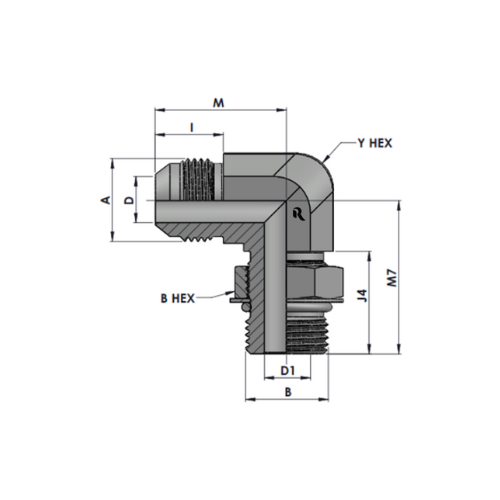

Description
| Tube O.D. |
A THREAD |
B THREAD |
Y Hex |
B Hex |
M |
M7 |
I |
J4 |
D Drill |
D1 Drill |
Part Number |
Working pressure in Bar |
| 1/4″ |
7/16″-20UNF-2A |
9/16″-18UNF-2A |
14.30 |
17.46 |
26.80 |
31.80 |
14.00 |
19.10 |
4.40 |
7.50 |
RJ-6801-04-06-NWO |
345.0 |
| 1/4″ |
7/16″-20UNF-2A |
7/16″-20UNF-2A |
11.11 |
14.28 |
22.60 |
26.20 |
14.00 |
18.50 |
4.40 |
4.40 |
RJ-6801-04-04-NWO |
345.0 |
| 5/16″ |
1/2″-20UNF-2A |
9/16″-18UNF-2A |
14.30 |
17.46 |
26.60 |
31.80 |
14.00 |
19.10 |
6.00 |
7.50 |
RJ-6801-05-04-NWO |
345.0 |
| 3/8″ |
9/16″-18UNF-2A |
7/16″-20UNF-2A |
14.30 |
14.28 |
26.90 |
30.30 |
14.10 |
18.50 |
7.50 |
7.50 |
RJ-6801-06-04-NWO |
345.0 |
| 3/8″ |
9/16″-18UNF-2A |
1/2″-20UNF-2A |
14.30 |
15.87 |
26.90 |
30.30 |
14.10 |
18.50 |
7.50 |
6.00 |
RJ-6801-06-05-NWO |
345.0 |
| 3/8″ |
9/16″-18UNF-2A |
9/16″-18UNF-2A |
14.30 |
17.46 |
26.90 |
31.80 |
14.10 |
19.10 |
7.50 |
7.50 |
RJ-6801-06-06-NWO |
345.0 |
| 3/8″ |
9/16″-18UNF-2A |
3/4″-16UNF-2A |
19.00 |
22.22 |
29.00 |
36.90 |
14.10 |
25.25 |
7.50 |
9.90 |
RJ-6801-06-08-NWO |
310.0 |
| 3/8″ |
9/16″-18UNF-2A |
7/8″-14UNF-2A |
22.22 |
25.40 |
31.00 |
43.20 |
14.10 |
29.20 |
7.50 |
12.30 |
RJ-6801-06-10-NWO |
240.0 |
| 1/2″ |
3/4″-16UNF-2A |
9/16″-18UNF-2A |
19.00 |
17.46 |
31.80 |
33.35 |
16.70 |
19.00 |
9.90 |
7.50 |
RJ-6801-08-06-NWO |
240.0 |
| 1/2″ |
3/4″-16UNF-2A |
3/4″-16UNF-2A |
19.00 |
22.22 |
31.80 |
36.80 |
16.70 |
21.90 |
9.90 |
9.90 |
RJ-6801-08-08-NWO |
310.0 |
| 1/2″ |
3/4″-16UNF-2A |
7/8″-14UNF-2A |
22.22 |
25.40 |
33.80 |
43.20 |
16.70 |
25.40 |
9.90 |
12.30 |
RJ-6801-08-10-NWO |
310.0 |
| 1/2″ |
3/4″-16UNF-2A |
1-1/16″-12UN-2A |
27.00 |
31.75 |
36.07 |
49.30 |
16.70 |
29.00 |
9.90 |
15.50 |
RJ-6801-08-12-NWO |
240.0 |
| 5/8″ |
7/8″-14UNF-2A |
3/4″-16UNF-2A |
22.22 |
22.22 |
36.80 |
39.10 |
19.30 |
21.90 |
12.30 |
9.90 |
RJ-6801-10-08-NWO |
240.0 |
| 5/8″ |
7/8″-14UNF-2A |
7/8″-14UNF-2A |
22.22 |
25.40 |
36.80 |
43.20 |
19..3 |
25.40 |
12.30 |
12.30 |
RJ-6801-10-10-NWO |
240.0 |
| 3/4″ |
1-1/16″-12UN-2A |
7/8″-14UNF-2A |
27.00 |
25.40 |
42.20 |
45.20 |
21.90 |
25.40 |
15.50 |
12.30 |
RJ-6801-12-10-NWO |
240.0 |
| 3/4″ |
1-1/16″-12UN-2A |
1-1/16″-12UN-2A |
27.00 |
31.75 |
42.20 |
49.30 |
21.90 |
29.00 |
15.50 |
15.50 |
RJ-6801-12-12-NWO |
240.0 |
| 1″ |
1-5/16″-12UN-2A |
1-5/16″-12UN-2A |
33.30 |
38.10 |
46.00 |
52.10 |
23.10 |
29.00 |
21.40 |
21.40 |
RJ-6801-16-16-NWO |
210.0 |
| 1-1/4″ |
1-5/8″-12UN-2A |
1-5/8″-12UN-2A |
41.30 |
47.60 |
52.30 |
57.20 |
24.30 |
29.00 |
27.40 |
27.40 |
RJ-6801-20-20-NWO |
170.0 |
