RJ6801-LL-00-00 Series MJ-MAORB 90° X-LONG

RJ6801-LL-00-00 Series MJ-MAORB 90° X-LONG

Categories: ,

Description

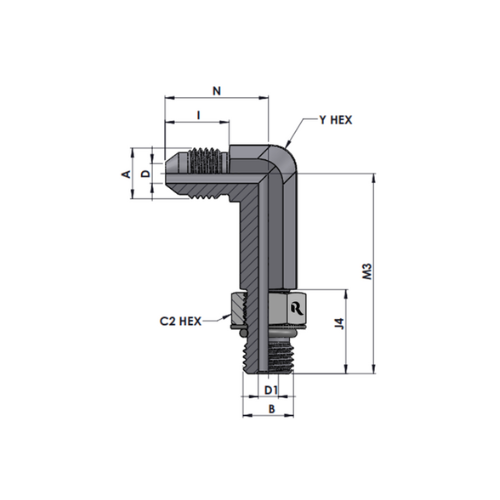

Tube O.D. A THREAD B THREAD Y Hex C2 Hex N M3 I J4 D Drill D1 Drill Part Number Torque N-m Working pressure in Bar
1/8″ 5/16″-24UNF-2A 5/16″-24UNF-2A 11.10 11.11 18.30 37.34 11.40 15.00 1.60 1.60 RJ-6801-LL-02-02-NWO 8-9 345
3/16″ 3/8″-24UNF-2A 3/8″-24UNF-2A 11.10 12.70 18.30 38.86 12.20 15.00 3.20 3.20 RJ-6801-LL-03-03-NWO 11-12 345
1/4″ 7/16″-20UNF-2A 7/16″-20UNF-2A 11.10 14.28 19.80 43.64 14.00 18.50 4.40 4.40 RJ-6801-LL-04-04-NWO 15-16 345
5/16″ 1/2″-20UNF-2A 1/2″-20UNF-2A 14.30 15.87 19.80 47.24 14.00 18.50 6.00 6.00 RJ-6801-LL-05-05-NWO 19-21 345
3/8″ 9/16″-18UNF-2A 9/16″-18UNF-2A 14.30 17.46 27.70 52.83 14.10 19.10 7.50 7.50 RJ-6801-LL-06-06-NWO 24-28 345
1/2″ 3/4″-16UNF-2A 3/4″-16UNF-2A 19.00 22.22 31.00 62.99 16.70 21.90 9.90 9.90 RJ-6801-LL-08-08-NWO 49-53 310
5/8″ 7/8″-14UNF-2A 7/8″-14UNF-2A 22.20 25.40 37.30 73.41 19.30 25.40 12.30 12.30 RJ-6801-LL-10-10-NWO 77-85 240
3/4″ 1-1/16″-12UN-2A 1-1/16″-12UN-2A 27.00 31.75 40.40 84.84 21.90 29.00 15.50 15.50 RJ-6801-LL-12-12-NWO 107-119 240
7/8″ 1-3/16″-12UN-2A 1-3/16″-12UN-2A 33.30 34.90 42.90 90.42 22.60 29.00 18.30 18.30 RJ-6801-LL-14-14-NWO 127-140 210
1″ 1-5/16″-12UN-2A 1-5/16″-12UN-2A 33.30 38.10 50.00 94.49 23.10 29.00 21.40 21.40 RJ-6801-LL-16-16-NWO 147-154 210
1-1/4″ 1-5/8″-12UN-2A 1-5/8″-12UN-2A 41.30 47.60 60.50 112.01 24.30 29.00 27.40 27.40 RJ-6801-LL-20-20-NWO 172-181 170
1-1/2″ 1-7/8″-12UN-2A 1-7/8″-12UN-2A 47.60 53.98 67.10 122.17 27.50 29.00 33.30 33.30 RJ-6801-LL-24-24-NWO 215-226 140
2″ 2-1/2″-12UN-2A 2-1/2″-12UN-2A 63.50 69.85 76.20 151.89 33.90 29.00 45.20 45.20 RJ-6801-LL-32-32-NWO 332-350 105
