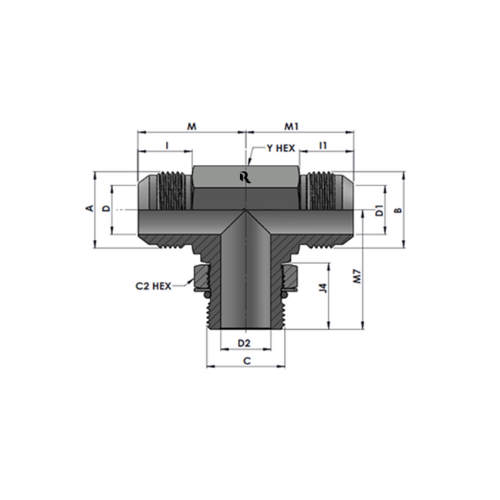

RJ6803-00-00-00 Series MJ-MJ-MAORB BRANCH TEE
Description
| Tube O.D. |
A THREAD |
B THREAD |
C THREAD |
Y Hex |
C2 Hex |
M |
M1 |
M7 |
I |
I1 |
J4 Hex |
D Drill |
D1 Drill |
D2 Drill |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/8″ |
5/16″-24UNF-2A |
5/16″-24UNF-2A |
5/16″-24UNF-2A |
11.10 |
11.11 |
19.60 |
19.60 |
23.90 |
11.40 |
11.40 |
15.00 |
1.60 |
1.60 |
1.60 |
RJ-6803-02-02-02-NWO |
8-9 |
345 |
| 3/16″ |
3/8″-24UNF-2A |
3/8″-24UNF-2A |
3/8″-24UNF-2A |
11.10 |
12.70 |
21.10 |
21.10 |
23.90 |
12.20 |
12.20 |
15.00 |
3.20 |
3.20 |
3.20 |
RJ-6803-03-03-03-NWO |
11-12 |
345 |
| 1/4″ |
7/16″-20UNF-2A |
7/16″-20UNF-2A |
7/16″-20UNF-2A |
11.10 |
14.28 |
22.60 |
22.60 |
26.20 |
14.00 |
14.00 |
18.50 |
4.40 |
4.40 |
4.40 |
RJ-6803-04-04-04-NWO |
15-16 |
345 |
| 5/16″ |
1/2″-20UNF-2A |
1/2″-20UNF-2A |
1/2″-20UNF-2A |
14.30 |
15.87 |
24.10 |
24.10 |
28.70 |
14.00 |
14.00 |
18.50 |
6.00 |
6.00 |
6.00 |
RJ-6803-05-05-05-NWO |
19-21 |
345 |
| 3/8″ |
9/16″-18UNF-2A |
9/16″-18UNF-2A |
9/16″-18UNF-2A |
14.30 |
17.46 |
26.90 |
26.90 |
31.80 |
14.10 |
14.10 |
19.10 |
7.50 |
7.50 |
7.50 |
RJ-6803-06-06-06-NWO |
24-28 |
345 |
| 1/2″ |
3/4″-16UNF-2A |
3/4″-16UNF-2A |
3/4″-16UNF-2A |
19.00 |
22.22 |
31.80 |
31.80 |
36.80 |
16.70 |
16.70 |
21.90 |
9.90 |
9.90 |
9.90 |
RJ-6803-08-08-08-NWO |
49-53 |
310 |
| 5/8″ |
7/8″-14UNF-2A |
7/8″-14UNF-2A |
7/8″-14UNF-2A |
22.20 |
25.40 |
36.80 |
36.80 |
43.20 |
19.30 |
19.30 |
25.40 |
12.30 |
12.30 |
12.30 |
RJ-6803-10-10-10-NWO |
77-85 |
240 |
| 3/4″ |
1-1/16″-12UN-2A |
1-1/16″-12UN-2A |
1-1/16″-12UN-2A |
27.00 |
31.75 |
42.20 |
42.20 |
49.30 |
21.90 |
21.90 |
29.00 |
15.50 |
15.50 |
15.50 |
RJ-6803-12-12-12-NWO |
107-119 |
240 |
| 7/8″ |
1-3/16″-12UN-2A |
1-3/16″-12UN-2A |
1-3/16″-12UN-2A |
33.30 |
34.90 |
45.70 |
45.70 |
50.80 |
22.60 |
22.60 |
29.00 |
18.30 |
18.30 |
18.30 |
RJ-6803-14-14-14-NWO |
127-140 |
210 |
| 1″ |
1-5/16″-12UN-2A |
1-5/16″-12UN-2A |
1-5/16″-12UN-2A |
33.30 |
38.10 |
46.00 |
46.00 |
52.10 |
23.10 |
23.10 |
29.00 |
21.40 |
21.40 |
21.40 |
RJ-6803-16-16-16-NWO |
147-154 |
210 |
| 1-1/4″ |
1-5/8″-12UN-2A |
1-5/8″-12UN-2A |
1-5/8″-12UN-2A |
41.30 |
47.60 |
52.30 |
52.30 |
57.20 |
24.30 |
24.30 |
29.00 |
27.40 |
27.40 |
27.40 |
RJ-6803-20-20-20-NWO |
172-181 |
170 |
| 1-1/2″ |
1-7/8″-12UN-2A |
1-7/8″-12UN-2A |
1-7/8″-12UN-2A |
47.60 |
53.98 |
59.20 |
59.20 |
60.70 |
27.50 |
27.50 |
29.00 |
33.30 |
33.30 |
33.30 |
RJ-6803-24-24-24-NWO |
215-226 |
140 |
| 2″ |
2-1/2″-12UN-2A |
2-1/2″-12UN-2A |
2-1/2″-12UN-2A |
63.50 |
69.85 |
77.70 |
77.70 |
73.40 |
33.90 |
33.90 |
29.00 |
45.20 |
45.20 |
45.20 |
RJ-6803-32-32-32-NWO |
332-350 |
105 |
