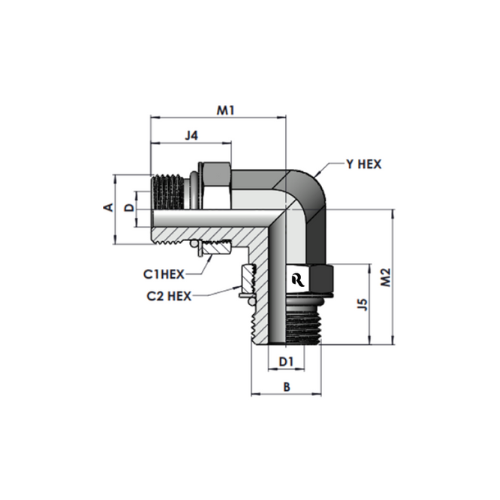

RJ6807-00-00 Series MAORB-MAORB 90°

Description

Tube O.D.	A THREAD	B THREAD	Y Hex	C1 Hex	C2 Hex	M1	M2	J4	J5	D Drill	D1 Drill	Part Number	Torque N-m	Working pressure in Bar
1/4″	7/16″-20UNF-2A	7/16″-20UNF-2A	11.13	14.28	14.28	26.2	26.2	18.20	18.20	4.4	4.4	RJ-6807-04-04-NWO	15-16	345
3/8″	9/16″-18UNF-2A	9/16″-18UNF-2A	14.27	17.46	17.46	31.8	31.8	19.11	19.11	7.50	7.50	RJ-6807-06-06-NWO	24-28	345
1/2″	3/4″-16UNF-2A	3/4″-16UNF-2A	19.05	22.22	22.22	36.8	36.8	21.90	21.90	9.90	9.90	RJ-6807-08-08-NWO	49-53	311
3/4″	1-1/16″-12UN-2A	1-1/16″-12UN-2A	26.97	31.75	31.75	49.3	49.3	21.90	21.90	12.30	12.30	RJ-6807-12-12-NWO	117-119	240
1″	1-5/16″-12UN-2A	1-5/16″-12UN-2A	33.32	38.11	38.11	52.1	52.1	23.11	23.11	21.40	21.40	RJ-6807-16-16-NWO	147-154	211
1-1/4″	1-5/8″-12UN-2A	1-5/8″-12UN-2A	41.28	47.60	47.60	57.2	57.2	29.00	29.00	27.40	27.40	RJ-6807-20-20-NWO	172-181	170
1-1/2″	1-7/8″-12UN-2A	1-7/8″-12UN-2A	47.63	53.97	53.97	60.7	60.7	29.00	29.00	33.30	33.30	RJ-6807-24-24-NWO	215-226	140
