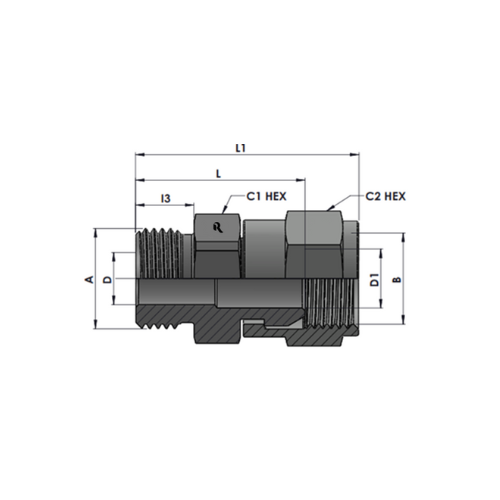

RJ6900-00-00 Series MAORB-FPS STRAIGHT
Description
| Tube O.D. |
A THREAD |
B THREAD |
Y Hex |
C2 Hex |
L |
L1 |
I3 |
D Drill |
D1 Drill |
Part Number |
Working pressure in Bar |
| 3/8″ |
7/16″-20UNF-2A |
1/4″-18NPSM |
17.47 |
17.46 |
27.20 |
32.00 |
9.93 |
7.50 |
5.80/5.30 |
RJ-6900-06-04 |
275 |
| 3/8″ |
9/16″-18UNF-2A |
3/8″-18NPSM |
17.47 |
22.22 |
31.75 |
37.45 |
9.93 |
7.50 |
9.10/8.10 |
RJ-6900-06-06 |
210 |
| 3/8″ |
9/16″-18UNF-2A |
3/8″-18NPSM |
20.63 |
25.40 |
32.75 |
39.85 |
9.93 |
7.50 |
12.20/11.20 |
RJ-6900-06-08 |
210 |
| 1/2″ |
3/4″-16UNF-2A |
1/4″-18NPSM |
22.22 |
17.46 |
29.70 |
34.55 |
11.13 |
9.90 |
5.80/5.30 |
RJ-6900-08-04 |
275 |
| 1/2″ |
3/4″-16UNF-2A |
3/8″-18NPSM |
22.22 |
22.22 |
31.20 |
35.60 |
11.13 |
9.90 |
9.10/8.10 |
RJ-6900-08-06 |
210 |
| 1/2″ |
3/4″-16UNF-2A |
1/2″-14NPSM |
22.22 |
25.40 |
32.30 |
39.40 |
11.13 |
9.90 |
12.20/11.20 |
RJ-6900-08-08 |
210 |
| 5/8″ |
7/8″-14UNF-2A |
3/8″-18NPSM |
25.40 |
22.22 |
32.00 |
37.35 |
12.70 |
12.30 |
9.10/8.10 |
RJ-6900-10-06 |
210 |
| 5/8″ |
7/8″-14UNF-2A |
1/2″-14NPSM |
25.40 |
25.40 |
35.60 |
40.90 |
12.70 |
12.30 |
12.20/11.20 |
RJ-6900-10-08 |
210 |
| 3/4″ |
1-1/16″-12UN-2A |
3/8″-18NPSM |
31.75 |
22.22 |
35.80 |
41.00 |
15.09 |
15.50 |
9.10/8.10 |
RJ-6900-12-06 |
210 |
| 3/4″ |
1-1/16″-12UN-2A |
1/2″-14NPSM |
31.75 |
25.40 |
36.80 |
44.00 |
15.09 |
15.500 |
12.20/11.20 |
RJ-6900-12-08 |
210 |
| 1″ |
1-5/16″-12UN-2A |
1″-11-1/2NPSM |
38.10 |
38.10 |
43.43 |
52.32 |
15.09 |
21.30 |
21.30 |
RJ-6900-16-16 |
140 |
