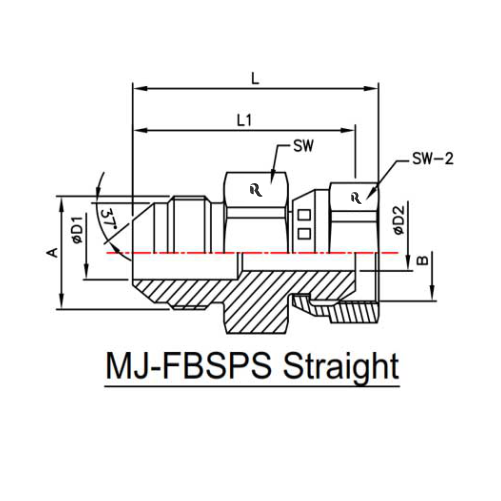

RJ7004-00-00 – MJ-FBSPS STRAIGHT
Description
| SR.NO. |
PART NO. |
SW |
L |
L1 |
A JIC THREAD |
ǾD1 |
B BSPP THREAD (INT) |
ǾD2 |
SW-2 |
| 01 |
RJ-7004-04-02 |
14.00 |
36.00 |
31.70 |
7/16″-20UNF |
4.40 |
1/8″-28BSPP |
3.50 |
14.00 |
| 02 |
RJ-7004-04-04 |
19.00 |
36.58 |
31.40 |
7/16″-20UNF |
4.40 |
1/4″-19BSPP |
4.70 |
19.00 |
| 03 |
RJ-7004-04-06 |
22.00 |
43.50 |
37.50 |
7/16″-20UNF |
4.40 |
3/8″-19BSPP |
7.90 |
22.00 |
| 04 |
RJ-7004-06-04 |
19.00 |
36.50 |
31.30 |
9/16″-18UNF |
7.50 |
1/4″-19BSPP |
4.50 |
19.00 |
| 05 |
RJ-7004-06-06 |
19.00 |
40.64 |
34.70 |
9/16″-18UNF |
7.50 |
3/8″-19BSPP |
7.90 |
22.00 |
| 06 |
RJ-7004-06-08 |
27.00 |
46.50 |
40.00 |
9/16″-18UNF |
7.50 |
1/2″-14BSPP |
11.10 |
27.00 |
| 07 |
RJ-7004-08-06 |
22.00 |
42.30 |
36.50 |
3/4″-16UNF |
9.90 |
3/8″-19BSPP |
7.10 |
22.00 |
| 08 |
RJ-7004-08-08 |
27.00 |
49.02 |
42.50 |
3/4″-16UNF |
9.90 |
1/2″-14BSPP |
11.10 |
27.00 |
| 09 |
RJ-7004-08-10 |
27.00 |
53.70 |
44.00 |
3/4″-16UNF |
9.90 |
5/8″-14BSPP |
14.30 |
30.00 |
| 10 |
RJ-7004-08-12 |
27.00 |
53.70 |
45.00 |
3/4″-16UNF |
9.90 |
3/4″-14BSPP |
16.70 |
32.00 |
| 11 |
RJ-7004-10-08 |
24.00 |
50.50 |
44.00 |
7/8″-14UNF |
12.30 |
1/2″-14BSPP |
9.70 |
27.00 |
| 12 |
RJ-7004-10-10 |
27.00 |
52.50 |
42.80 |
7/8″-14UNF |
12.30 |
5/8″-14BSPP |
14.30 |
30.00 |
| 13 |
RJ-7004-10-12 |
27.00 |
56.30 |
47.60 |
7/8″-14UNF |
12.30 |
3/4″-14BSPP |
16.70 |
32.00 |
| 14 |
RJ-7004-12-12 |
27.00 |
58.00 |
49.30 |
1-1/16″-12UN |
15.50 |
3/4″-14BSPP |
16.70 |
32.00 |
| 15 |
RJ-7004-12-16 |
36.00 |
68.90 |
58.40 |
1-1/16″-12UN |
15.50 |
1″-11BSPP |
22.20 |
41.00 |
| 16 |
RJ-7004-16-12 |
36.00 |
59.10 |
50.40 |
1-5/16″-12UN |
21.50 |
3/4″-14BSPP |
15.50 |
32.00 |
| 17 |
RJ-7004-16-16 |
41.00 |
60.00 |
49.50 |
1-5/16″-12UN |
21.50 |
1″-11BSPP |
22.20 |
41.00 |
