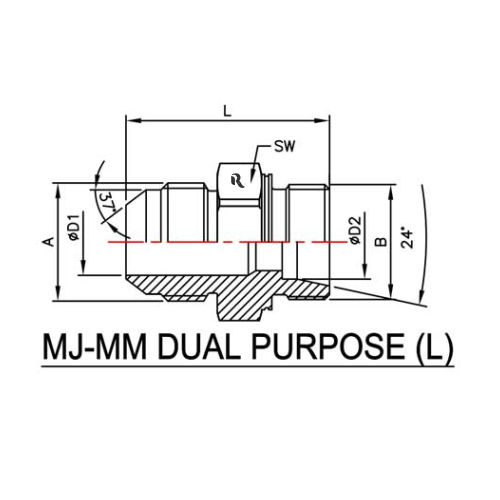

RJ7005-00-L00-00 – MJ-MM DUAL PURPOSE (L)
Description
| SR.NO. |
PART NO. |
SW |
L |
A JIC THREAD |
ǾD1 |
B MM THREAD |
ǾD2 |
| 01 |
RJ-7005-04-L06-12 |
17.00 |
32.50 |
7/16″-20UNF |
4.40 |
M12X1.5 6g |
6.00 |
| 02 |
RJ-7005-04-L08-14 |
19.00 |
33.50 |
7/16″-20UNF |
4.40 |
M14X1.5 6g |
8.00 |
| 03 |
RJ-7005-04-L10-16 |
22.00 |
35.50 |
7/16″-20UNF |
4.40 |
M16X1.5 6g |
10.00 |
| 04 |
RJ-7005-06-L08-12 |
17.00 |
32.60 |
9/16″-18UNF |
7.50 |
M12X1.5 6g |
6.00 |
| 05 |
RJ-7005-06-L08-14 |
19.00 |
33.60 |
9/16″-18UNF |
7.50 |
M14X1.5 6g |
8.00 |
| 06 |
RJ-7005-06-L10-16 |
22.00 |
35.60 |
9/16″-18UNF |
7.50 |
M16X1.5 6g |
10.00 |
| 07 |
RJ-7005-06-L12-18 |
24.00 |
37.60 |
9/16″-18UNF |
7.50 |
M18X1.5 6g |
12.00 |
| 08 |
RJ-7005-06-L15-22 |
27.00 |
38.60 |
9/16″-18UNF |
7.50 |
M22X1.5 6g |
15.00 |
| 09 |
RJ-7005-08-L10-16 |
22.00 |
38.20 |
3/4″-16UNF |
9.90 |
M16X1.5 6g |
10.00 |
| 10 |
RJ-7005-08-L12-18 |
24.00 |
40.20 |
3/4″-16UNF |
9.90 |
M18X1.5 6g |
12.00 |
| 11 |
RJ-7005-08-L15-22 |
27.00 |
41.20 |
3/4″-16UNF |
9.90 |
M22X1.5 6g |
15.00 |
| 12 |
RJ-7005-10-L12-18 |
24.00 |
42.80 |
7/8″-14UNF |
12.30 |
M18X1.5 6g |
12.00 |
| 13 |
RJ-7005-10-L15-22 |
27.00 |
43.80 |
7/8″-14UNF |
12.30 |
M22X1.5 6g |
15.00 |
| 14 |
RJ-7005-10-L18-26 |
32.00 |
47.80 |
7/8″-14UNF |
12.30 |
M26X1.5 6g |
18.00 |
| 15 |
RJ-7005-12-L15-22 |
27.00 |
46.40 |
1-1/16″-12UN |
15.50 |
M22X1.5 6g |
15.00 |
| 16 |
RJ-7005-12-L18-24 |
27.00 |
46.40 |
1-1/16″-12UN |
15.50 |
M24X1.5 6g |
16.00 |
| 17 |
RJ-7005-12-L18-26 |
32.00 |
50.40 |
1-1/16″-12UN |
15.50 |
M26X1.5 6g |
18.00 |
| 18 |
RJ-7005-12-L22-30 |
36.00 |
52.90 |
1-1/16″-12UN |
15.50 |
M30X2.0 6g |
22.00 |
| 19 |
RJ-7005-16-L22-30 |
36.00 |
54.10 |
1-5/16″-12UN |
21.40 |
M30X2.0 6g |
22.00 |
| 20 |
RJ-7005-16-L28-36 |
41.00 |
55.10 |
1-5/16″-12UN |
21.40 |
M36X2.0 6g |
28.00 |
| 21 |
RJ-7005-20-L35-45 |
46.00 |
58.30 |
1-5/8″-12UN |
27.40 |
M45X2.0 6g |
35.30 |
| 22 |
RJ-7005-24-L42-52 |
55.00 |
61.50 |
1-7/8″-12UN |
33.30 |
M52X2.0 6g |
42.30 |
