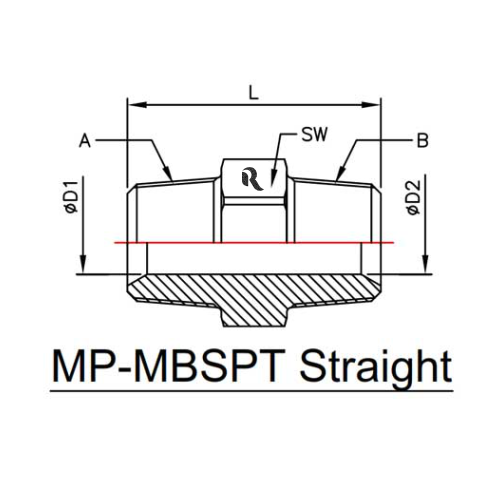

RJ7030-00-00 – MP-MBSPT STRAIGHT
Description
| SR.NO. |
PART NO. |
SW |
L |
A NPTF THREAD |
ØD1 |
B BSPT THREAD |
ØD2 |
| 01 |
RJ-7030-04-04 |
14.0 |
35.80 |
1/4″-18NPTF |
7.00 |
1/4″-19BSPT |
7.00 |
| 02 |
RJ-7030-04-06 |
19.0 |
35.80 |
1/4″-18NPTF |
7.00 |
3/8″-19BSPT |
10.30 |
| 03 |
RJ-7030-06-04 |
19.0 |
37.00 |
3/8″-18NPTF |
10.30 |
1/4″-19BSPT |
7.00 |
| 04 |
RJ-7030-06-06 |
19.0 |
40.00 |
3/8″-18NPTF |
10.30 |
3/8″-19BSPT |
10.30 |
| 05 |
RJ-7030-08-08 |
22.0 |
49.80 |
1/2″-14NPTF |
12.70 |
1/2″-14BSPT |
12.70 |
| 06 |
RJ-7030-12-12 |
27.0 |
48.70 |
3/4″-14NPTF |
18.00 |
3/4″-14BSPT |
18.00 |
| 07 |
RJ-7030-16-16 |
36.0 |
58.50 |
1″-11-1/2NPTF |
23.80 |
1″-11BSPT |
23.80 |
