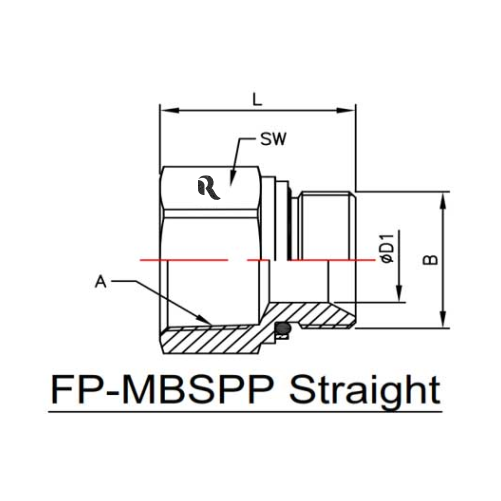

RJ7042-00-00 – FP-MBSPP STRAIGHT
Description
| SR.NO. |
PART NO. |
SW |
L |
A NPTF THREAD |
B BSPP THREAD (INT) |
ØD1 |
| 01 |
RJ-7042-02-02 |
17.0 |
28.00 |
1/8″-27NPTF |
1/8″-28BSPP |
3.50 |
| 02 |
RJ-7042-04-04 |
19.0 |
32.50 |
1/4″-18NPTF |
1/4″-19BSPP |
6.00 |
| 03 |
RJ-7042-04-06 |
22.0 |
21.50 |
1/4″-18NPTF |
3/8″-19BSPP |
10.99 |
| 04 |
RJ-7042-04-08 |
27.0 |
28.00 |
1/4″-18NPTF |
1/2″-14BSPP |
10.99 |
| 05 |
RJ-7042-04-12 |
32.0 |
28.00 |
1/4″-18NPTF |
3/4″-14BSPP |
10.99 |
| 06 |
RJ-7042-04-16 |
41.0 |
29.00 |
1/4″-18NPTF |
1″-11BSPP |
10.99 |
| 07 |
RJ-7042-06-04 |
22.0 |
32.90 |
3/8″-18NPTF |
1/4″-19BSPP |
6.00 |
| 08 |
RJ-7042-06-06 |
22.0 |
33.90 |
3/8″-18NPTF |
3/8″-19BSPP |
7.90 |
| 09 |
RJ-7042-06-08 |
27.0 |
42.40 |
3/8″-18NPTF |
1/2″-14BSPP |
11.10 |
| 10 |
RJ-7042-06-10 |
30.0 |
26.00 |
3/8″-18NPTF |
5/8″-14BSPP |
14.41 |
| 11 |
RJ-7042-06-12 |
32.0 |
28.00 |
3/8″-18NPTF |
3/4″-14BSPP |
14.41 |
| 12 |
RJ-7042-06-16 |
41.0 |
29.00 |
3/8″-18NPTF |
1″-11BSPP |
14.41 |
| 13 |
RJ-7042-08-04 |
30.0 |
39.00 |
1/2″-14NPTF |
1/4″-19BSPP |
6.00 |
| 14 |
RJ-7042-08-06 |
30.0 |
40.00 |
1/2″-14NPTF |
3/8″-19BSPP |
7.90 |
| 15 |
RJ-7042-08-08 |
30.0 |
44.50 |
1/2″-14NPTF |
1/2″-14BSPP |
11.10 |
| 16 |
RJ-7042-08-12 |
32.0 |
41.00 |
1/2″-14NPTF |
3/4″-14BSPP |
16.70 |
| 17 |
RJ-7042-08-16 |
41.0 |
29.00 |
1/2″-14NPTF |
1″-11BSPP |
17.81 |
| 18 |
RJ-7042-12-12 |
32.0 |
48.50 |
3/4″-14NPTF |
3/4″-14BSPP |
16.70 |
| 19 |
RJ-7042-12-16 |
41.0 |
50.50 |
3/4″-14NPTF |
1″-11BSPP |
22.20 |
| 20 |
RJ-7042-16-16 |
41.0 |
54.80 |
1″-11-1/2NPTF |
1″-11BSPP |
22.20 |
