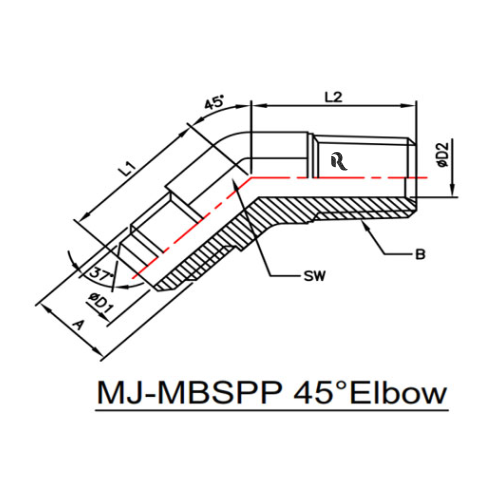

RJ7100-00-00 – MJ-MBSPP 45° ELBOW
Description
| SR.NO. |
PART NO. |
SW |
A JIC THREAD |
ØD1 |
L1 |
B BSPT THREAD (INT) |
ØD2 |
L2 |
| 01 |
RJ-7100-06-04 |
14.0 |
9/16″-18UNF |
7.50 |
21.00 |
1/4″-19BSPT |
7.00 |
22.00 |
| 02 |
RJ-7100-06-06 |
19.0 |
9/16″-18UNF |
7.50 |
21.00 |
3/8″-19BSPT |
10.30 |
24.00 |
| 03 |
RJ-7100-08-06 |
19.0 |
3/4″-16UNF |
9.90 |
25.00 |
3/8″-19BSPT |
10.30 |
24.00 |
| 04 |
RJ-7100-08-08 |
22.0 |
3/4″-16UNF |
9.90 |
25.00 |
1/2″-14BSPT |
13.50 |
30.00 |
| 05 |
RJ-7100-10-08 |
22.0 |
7/8″-14UNF |
12.30 |
28.00 |
1/2″-14BSPT |
13.50 |
30.00 |
| 06 |
RJ-7100-12-12 |
27.0 |
1-1/16″-12UN |
15.50 |
32.50 |
3/4″-14BSPT |
18.00 |
30.50 |
| 07 |
RJ-7100-16-12 |
33.0 |
1-5/16″-12UN |
21.50 |
37.50 |
3/4″-14BSPT |
18.00 |
30.50 |
| 08 |
RJ-7100-16-16 |
33.0 |
1-5/16″-12UN |
21.50 |
37.50 |
1″-11BSPT |
23.80 |
37.50 |
