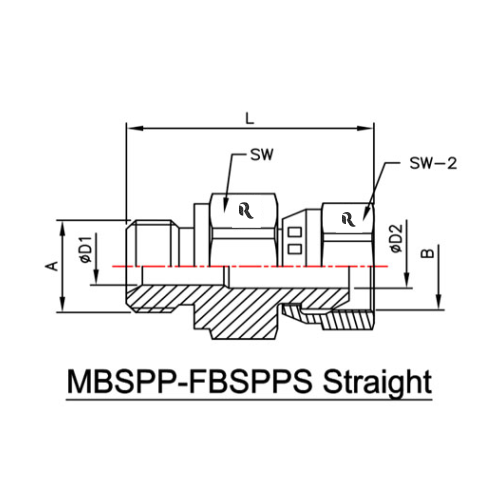

RJ9024-00-00 – MBSPP-FBSPPS STRAIGHT
Description
| SR.NO. |
PART NO. |
SW |
L |
L1 |
A UNF THREAD (INT) |
ØD1 |
B BSPP THREAD(INT) |
ØD2 |
SW-2 |
| 01 |
RJ-9024-04-04 |
19.00 |
34.50 |
31.80 |
1/4″-19BSPP |
4.70 |
1/4″-19BSPP |
4.50 |
19.00 |
| 02 |
RJ-9024-04-06 |
19.00 |
37.00 |
33.00 |
1/4″-19BSPP |
4.70 |
3/8″-19BSPP |
7.10 |
22.00 |
| 03 |
RJ-9024-04-08 |
22.00 |
42.50 |
38.00 |
1/4″-19BSPP |
4.70 |
1/2″-14BSPP |
9.70 |
27.00 |
| 04 |
RJ-9024-06-04 |
22.00 |
37.00 |
34.30 |
3/8″-19BSPP |
7.90 |
1/4″-19BSPP |
4.50 |
19.00 |
| 05 |
RJ-9024-06-06 |
22.00 |
39.60 |
35.50 |
3/8″-19BSPP |
7.90 |
3/8″-19BSPP |
7.10 |
22.00 |
| 06 |
RJ-9024-06-08 |
22.00 |
43.50 |
39.50 |
3/8″-19BSPP |
7.90 |
1/2″-14BSPP |
9.70 |
27.00 |
| 07 |
RJ-9024-06-12 |
27.00 |
48.70 |
42.50 |
3/8″-19BSPP |
7.90 |
3/4″-14BSPP |
15.50 |
32.00 |
| 08 |
RJ-9024-08-04 |
27.00 |
40.70 |
38.50 |
1/2″-14BSPP |
11.10 |
1/4″-19BSPP |
4.50 |
19.00 |
| 09 |
RJ-9024-08-06 |
27.00 |
43.00 |
40.00 |
1/2″-14BSPP |
11.10 |
3/8″-19BSPP |
7.10 |
22.00 |
| 10 |
RJ-9024-08-08 |
27.00 |
46.00 |
42.50 |
1/2″-14BSPP |
11.10 |
1/2″-14BSPP |
9.70 |
27.00 |
| 11 |
RJ-9024-08-10 |
27.00 |
50.20 |
43.50 |
1/2″-14BSPP |
11.10 |
5/8″-14BSPP |
12.00 |
30.00 |
| 12 |
RJ-9024-08-12 |
27.00 |
51.20 |
45.50 |
1/2″-14BSPP |
11.10 |
3/4″-14BSPP |
15.50 |
32.00 |
| 13 |
RJ-9024-08-16 |
32.00 |
58.70 |
53.00 |
1/2″-14BSPP |
11.10 |
1″-11BSPP |
20.40 |
41.00 |
| 14 |
RJ-9024-10-08 |
30.00 |
49.50 |
46.00 |
5/8″-14BSPP |
14.30 |
1/2″-14BSPP |
9.70 |
27.00 |
| 15 |
RJ-9024-10-10 |
30.00 |
53.00 |
46.30 |
5/8″-14BSPP |
14.30 |
5/8″-14BSPP |
12.00 |
30.00 |
| 16 |
RJ-9024-10-12 |
30.00 |
52.70 |
47.00 |
5/8″-14BSPP |
14.30 |
3/4″-14BSPP |
15.50 |
32.00 |
| 17 |
RJ-9024-12-06 |
32.00 |
46.50 |
43.50 |
3/4″-14BSPP |
16.70 |
3/8″-19BSPP |
7.10 |
22.00 |
| 18 |
RJ-9024-12-08 |
32.00 |
50.00 |
46.50 |
3/4″-14BSPP |
16.70 |
1/2″-14BSPP |
9.70 |
27.00 |
| 19 |
RJ-9024-12-10 |
32.00 |
52.20 |
45.50 |
3/4″-14BSPP |
16.70 |
5/8″-14BSPP |
12.00 |
30.00 |
| 20 |
RJ-9024-12-12 |
32.00 |
53.50 |
47.30 |
3/4″-14BSPP |
16.70 |
3/4″-14BSPP |
15.50 |
32.00 |
| 21 |
RJ-9024-12-16 |
33.00 |
63.00 |
55.50 |
3/4″-14BSPP |
16.70 |
1″-11BSPP |
20.40 |
41.00 |
| 22 |
RJ-9024-16-08 |
41.00 |
54.50 |
51.00 |
1″-11BSPP |
22.20 |
1/2″-14BSPP |
9.70 |
27.00 |
| 23 |
RJ-9024-16-10 |
41.00 |
57.20 |
50.50 |
1″-11BSPP |
22.20 |
5/8″-14BSPP |
12.00 |
30.00 |
| 24 |
RJ-9024-16-12 |
41.00 |
57.70 |
52.00 |
1″-11BSPP |
22.20 |
3/4″-14BSPP |
15.50 |
32.00 |
| 25 |
RJ-9024-16-16 |
41.00 |
66.00 |
58.50 |
1″-11BSPP |
22.20 |
1″-11BSPP |
20.40 |
41.00 |
