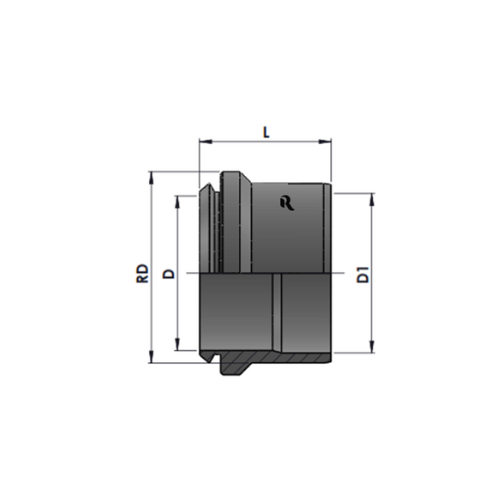

RJC0319-00 Series FERRULE
Description
| RD |
L |
D |
D1 |
Part Number |
Weight |
Torque N-m |
Working pressure in Bar |
| 6.02 |
7.32 |
3.30 |
3.56 |
RJ-C0319-02 |
0.002 |
345 |
8-9 |
| 7.80 |
8.36 |
4.90 |
5.21 |
RJ-C0319-03 |
0.003 |
345 |
11-12 |
| 9.32 |
9.22 |
6.48 |
8.61 |
RJ-C0319-04 |
0.005 |
310 |
15-16 |
| 10.92 |
9.32 |
8.08 |
8.38 |
RJ-C0319-05 |
0.008 |
275 |
19-21 |
| 12.50 |
9.98 |
9.65 |
9.98 |
RJ-C0319-06 |
0.011 |
275 |
24-28 |
| 16.84 |
10.90 |
12.83 |
13.23 |
RJ-C0319-08 |
0.021 |
275 |
49-53 |
| 19.81 |
11.23 |
16.03 |
16.43 |
RJ-C0319-10 |
0.030 |
210 |
77-85 |
| 23.50 |
12.06 |
19.20 |
19.61 |
RJ-C0319-12 |
0.045 |
210 |
107-119 |
| 27.00 |
12.06 |
22.38 |
22.78 |
RJ-C0319-14 |
0.060 |
170 |
127-140 |
| 30.15 |
12.06 |
25.55 |
25.96 |
RJ-C0319-16 |
0.074 |
170 |
147-154 |
| 36.73 |
12.06 |
32.00 |
32.38 |
RJ-C0319-20 |
0.110 |
140 |
172-181 |
| 43.03 |
12.06 |
38.35 |
38.71 |
RJ-C0319-24 |
0.152 |
105 |
215-226 |
| 56.13 |
12.93 |
51.16 |
51.46 |
RJ-C0319-32 |
0.276 |
80 |
332-350 |
