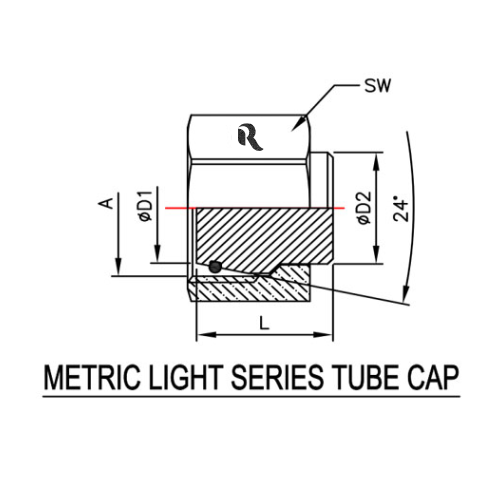

RJD8003-L00 – METRIC LIGHT SERIES TUBE CAP
Description
| SR.NO. |
PART NO. |
SW |
A THREAD MM (INT) |
L |
ØD1 |
ØD2 |
| 01 |
RJ-D8003-L06 |
|
M12X1.5 6H |
18.50 |
5.69 |
6.00 |
| 02 |
RJ-D8003-L08 |
|
M14X1.5 6H |
18.50 |
7.70 |
8.00 |
| 03 |
RJ-D8003-L10 |
|
M16X1.5 6H |
20.00 |
9.60 |
10.00 |
| 04 |
RJ-D8003-L12 |
|
M18X1.5 6H |
20.50 |
11.81 |
12.00 |
| 05 |
RJ-D8003-L16 |
|
M22X1.5 6H |
20.50 |
14.60 |
15.00 |
| 06 |
RJ-D8003-L18 |
|
M26X1.5 6H |
22.50 |
17.70 |
18.00 |
| 07 |
RJ-D8003-L22 |
|
M30X2.0 6H |
25.00 |
21.70 |
22.00 |
| 08 |
RJ-D8003-L28 |
|
M36X2.0 6H |
25.50 |
27.70 |
28.00 |
| 09 |
RJ-D8003-L35 |
|
M45X2.0 6H |
30.00 |
33.99 |
35.00 |
| 10 |
RJ-D8003-L42 |
|
M52X2.0 6H |
30.00 |
42.33 |
42.00 |
