RJFS0306-00 Series Bulkhead Lock Nut
Description

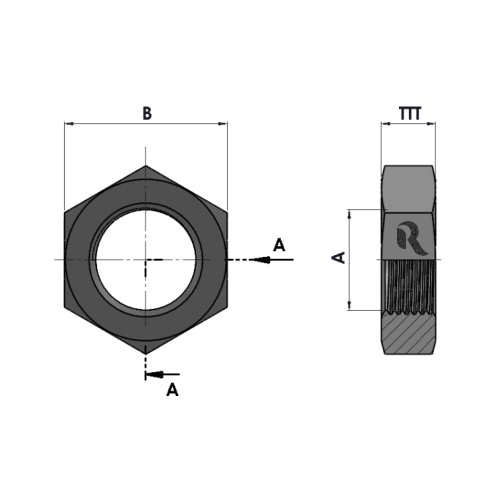

Tube O.D.
|
A THREAD
|
B Hex
|
TT
|
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
9/16″-18 |
20.64 |
6.90 |
RJ-FS0306-04 |
14-16 |
413 |
| 3/8″ |
11/16″-18 |
25.40 |
8.00 |
RJ-FS0306-06 |
24-27 |
413 |
| 1/2″ |
13/16″-16 |
28.58 |
9.00 |
RJ-FS0306-08 |
43-47 |
413 |
| 5/8″ |
1″-14 |
33.34 |
10.40 |
RJ-FS0306-10 |
60-68 |
413 |
| 3/4″ |
1-3/16″-12 |
38.10 |
10.40 |
RJ-FS0306-12 |
90-95 |
413 |
| 1″ |
1-7/16″-12 |
44.45 |
10.40 |
RJ-FS0306-16 |
125-135 |
413 |
| 1-1/4″ |
1-11/16″-12 |
50.80 |
10.40 |
RJ-FS0306-20 |
170-190 |
275 |
| 1-1/2″ |
2″-12 |
60.33 |
10.40 |
RJ-FS0306-24 |
200-225 |
275 |
