RJFS0403-00-00 Series Bore-MFS Straight
Description

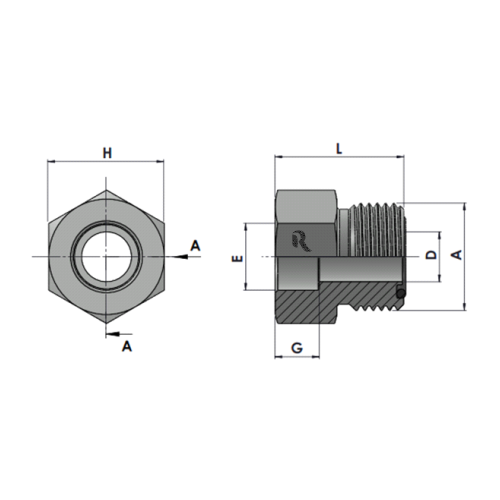

| Tube O.D. |
A THREAD |
H Hex |
L |
D |
E |
G |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
9/16″-18 |
15.88 |
22.00 |
4.40 |
6.50 |
8.50 |
RJ-FS0403-04-04 |
14-16 |
413 |
| 3/8″ |
11/16″-18 |
19.05 |
23.10 |
6.70 |
9.68 |
8.50 |
RJ-FS0403-06-06 |
24-27 |
413 |
| 1/2″ |
13/16″-16 |
22.22 |
24.70 |
9.60 |
12.85 |
8.50 |
RJ-FS0403-08-08 |
43-47 |
413 |
| 5/8″ |
1″-14 |
26.99 |
27.40 |
12.30 |
16.03 |
8.50 |
RJ-FS0403-10-10 |
60-68 |
413 |
| 3/4″ |
1-3/16″-12 |
31.75 |
33.70 |
15.50 |
19.23 |
12.50 |
RJ-FS0403-12-12 |
90-95 |
413 |
| 1″ |
1-7/16″-12 |
38.10 |
38.60 |
20.60 |
25.58 |
14.00 |
RJ-FS0403-16-16 |
125-135 |
413 |
| 1-1/4″ |
1-11/16″-12 |
44.45 |
38.60 |
26.00 |
31.95 |
14.00 |
RJ-FS0403-20-20 |
170-190 |
275 |
| 1-1/2″ |
2″-12 |
53.98 |
38.60 |
32.00 |
38.30 |
14.00 |
RJ-FS0403-24-24 |
200-225 |
275 |
