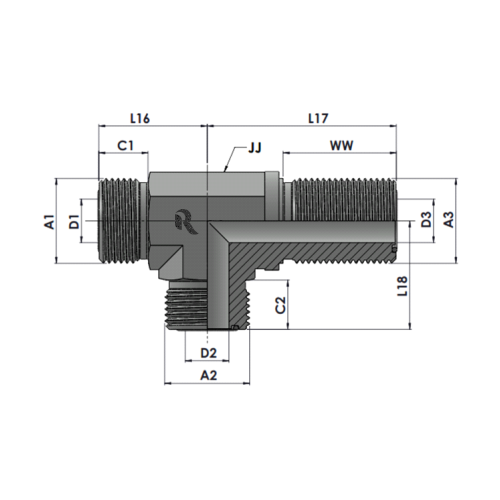

RJFS2704-00-00 Series MFS-MFS-MFS-MFS BULKHEAD RUN TEE
Description
| Tube O.D. |
A1 THREAD |
A2 THREAD |
A3 THREAD |
L16 LENGTH |
L17 LENGTH |
L18 LENGTH |
C1 LENGTH |
C2 LENGTH |
WW LENGTH |
D1 DRILL |
D2 DRILL |
D3 DRILL |
JJ Hex |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
9/16″-18 |
9/16″-18 |
9/16″-18 |
22.50 |
47.00 |
44.00 |
9.80 |
9.80 |
31.50 |
4.40 |
4.40 |
4.40 |
14.29 |
RJ-FS2704-04-04-04 |
14-16 |
413 |
| 3/8″ |
11/16″-18 |
11/16″-18 |
11/16″-18 |
26.00 |
52.00 |
48.50 |
11.20 |
11.20 |
34.00 |
6.70 |
6.70 |
6.70 |
19.05 |
RJ-FS2704-06-06-08 |
24-27 |
413 |
| 1/2″ |
13/16″-16 |
13/16″-16 |
13/16″-16 |
29.00 |
55.50 |
51.00 |
12.80 |
12.80 |
36.50 |
9.60 |
9.60 |
9.60 |
19.05 |
RJ-FS2704-08-08-08 |
43-47 |
413 |
| 5/8″ |
1″-14 |
1″-14 |
1″-14 |
34.50 |
63.00 |
56.50 |
15.50 |
15.50 |
40.60 |
12.30 |
12.30 |
12.30 |
26.99 |
RJ-FS2704-10-10-10 |
60-68 |
413 |
| 3/4″ |
1-3/16″-12 |
1-3/16″-12 |
1-3/16″-12 |
38.50 |
67.00 |
60.50 |
17.00 |
17.00 |
41.70 |
15.50 |
15.50 |
15.50 |
30.16 |
RJ-FS2704-12-12-12 |
90-95 |
413 |
| 1″ |
1-7/16″-12 |
1-7/16″-12 |
1-7/16″-12 |
42.50 |
71.00 |
65.00 |
17.50 |
17.50 |
42.20 |
20.00 |
20.00 |
20.00 |
36.51 |
RJ-FS2704-16-16-16 |
125-135 |
413 |
| 1-1/4″ |
1-11/16″-12 |
1-11/16″-12 |
1-11/16″-12 |
45.50 |
75.50 |
67.00 |
17.50 |
17.50 |
42.20 |
26.00 |
26.00 |
26.00 |
41.28 |
RJ-FS2704-20-20-20 |
170-190 |
275 |
