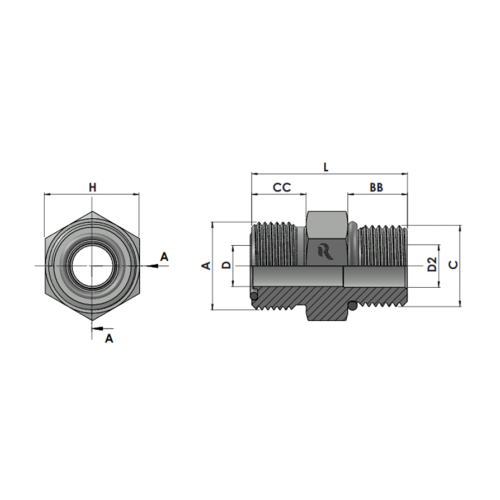

RJFS6400-00-00-O Series MFS-MORB STRAIGHT
Description
| Tube O.D. |
A THREAD |
C THREAD |
L LENGTH |
CC LENGTH |
BB LENGTH |
D DRILL |
D2 DRILL |
H Hex |
Part Number |
Torque N-m |
Working pressure in Bar |
| 1/4″ |
9/16″-18 |
7/16″-20 |
28.80 |
9.80 |
11.00 |
4.40 |
4.40 |
15.88 |
RJ-FS6400-04-04-O |
14-16 |
413 |
| 3/8″ |
11/16″-18 |
9/16″-18 |
31.90 |
11.20 |
12.00 |
6.70 |
7.50 |
19.05 |
RJ-FS6400-06-06-O |
24-27 |
413 |
| 1/2″ |
13/16″-16 |
3/4″-16 |
36.60 |
12.80 |
14.00 |
9.60 |
9.90 |
22.22 |
RJ-FS6400-08-08-O |
43-47 |
413 |
| 5/8″ |
1″-14 |
7/8″-14 |
43.10 |
15.50 |
16.00 |
12.30 |
12.30 |
26.99 |
RJ-FS6400-10-10-O |
60-68 |
413 |
| 3/4″ |
1-3/16″-12 |
1-1/16″-12 |
48.60 |
17.50 |
18.50 |
15.50 |
15.50 |
31.75 |
RJ-FS6400-1212-O |
90-95 |
413 |
| 1″ |
1-7/16″-12 |
1-5/16″-12 |
50.30 |
17.50 |
18.50 |
20.60 |
21.40 |
38.10 |
RJ-FS6400-16-16-O |
125-135 |
413 |
| 1-1/4″ |
1-11/16″-12 |
1-5/8″-12 |
52.30 |
17.50 |
18.50 |
26.00 |
27.40 |
44.45 |
RJ-FS6400-20-20-O |
170-190 |
275 |
| 1-1/2″ |
2″-12 |
1-7/8″-12 |
54.10 |
17.50 |
18.50 |
32.00 |
33.30 |
53.98 |
RJ-FS6400-24-24-O |
200-225 |
275 |
