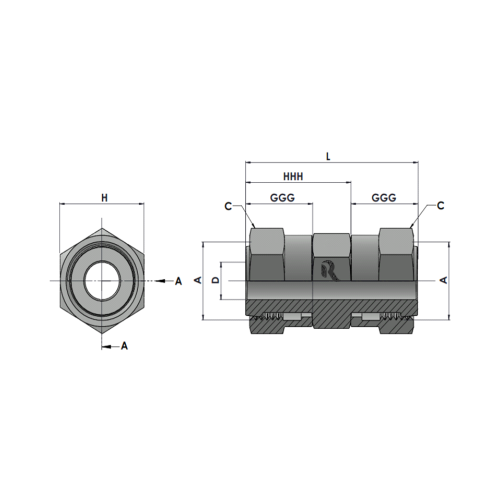

RJFS6565 FFSS-FFSS Straight
Description
| Tube O.D. |
A THREAD |
A THREAD |
L LENGTH |
GGG LENGTH |
HHH LENGTH |
D DRILL |
H Hex |
C Hex |
Part Number |
Working pressure in Bar |
| 1/4″ |
9/16″-18 |
9/16″-18 |
41.20 |
15.00 |
26.20 |
4.40 |
15.88 |
17.46 |
RJ-FS6565-04-04 |
413 |
| 3/8″ |
11/16″-16 |
11/16″-16 |
45.50 |
17.30 |
28.20 |
6.70 |
19.05 |
20.64 |
RJ-FS6565-06-06 |
413 |
| 1/2″ |
13/16″-16 |
13/16″-16 |
56.60 |
21.30 |
35.30 |
9.60 |
22.22 |
23.81 |
RJ-FS6565-08-08 |
413 |
| 5/8″ |
1″-14 |
1″-14 |
61.70 |
23.90 |
37.80 |
12.30 |
26.99 |
28.58 |
RJ-FS6565-10-10 |
413 |
| 3/4″ |
1-3/16″-12 |
1-3/16″-12 |
67.40 |
26.20 |
41.20 |
15.50 |
31.75 |
34.92 |
RJ-FS6565-12-12 |
413 |
| 1″ |
1-7/16″-12 |
1-7/16″-12 |
77.20 |
28.20 |
49.00 |
20.60 |
38.10 |
41.28 |
RJ-FS6565-16-16 |
413 |
