Description

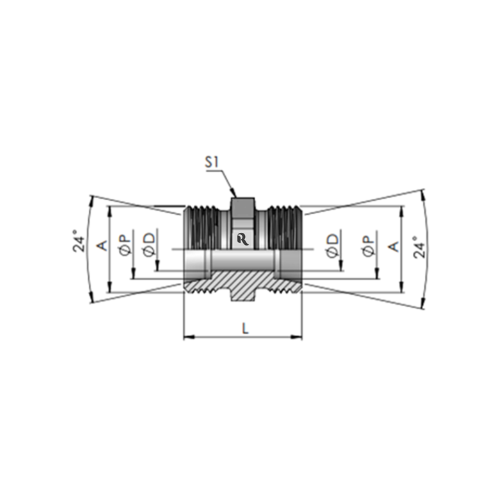

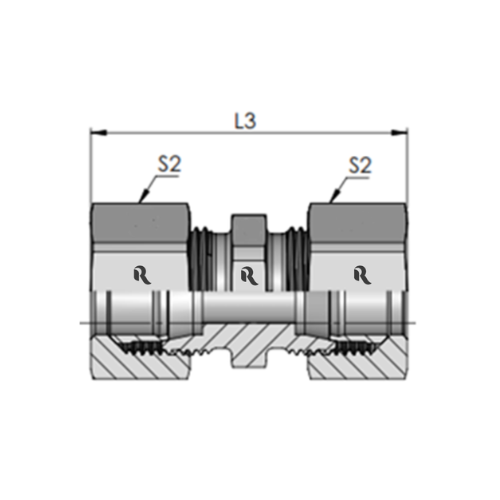

| TUBE O.D. | A Thread | S1 Hex | S2 Hex | L length | ØD DRILL | ØP | L3 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M14X1.5-6g | 14.00 | 17.00 | 30.00 | 4.00 | 6.00 | 45.00 | RJ-XG06S | G06S | 14-16 | 630 |
| 8 | M16X1.5-6g | 17.00 | 19.00 | 32.00 | 5.00 | 8.00 | 47.00 | RJ-XG08S | G08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 19.00 | 22.00 | 32.00 | 7.00 | 10.00 | 49.00 | RJ-XG10S | G10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 22.00 | 24.00 | 34.00 | 8.00 | 12.00 | 51.00 | RJ-XG12S | G12S | 43-54 | 630 |
| 16 | M24X1.5-6g | 27.00 | 30.00 | 38.00 | 12.00 | 16.00 | 57.00 | RJ-XG16S | G16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 32.00 | 36.00 | 44.00 | 16.00 | 20.00 | 66.00 | RJ-XG20S | G20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 41.00 | 46.00 | 50.00 | 20.00 | 25.00 | 74.00 | RJ-XG25S | G25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 46.00 | 50.00 | 54.00 | 25.00 | 30.00 | 80.00 | RJ-XG30S | G30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 55.00 | 60.00 | 61.00 | 32.00 | 38.00 | 90.00 | RJ-XG38S | G38S | 200-245 | 250 |
