Description

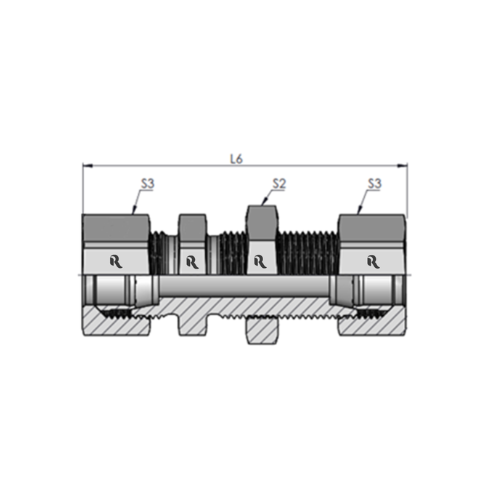

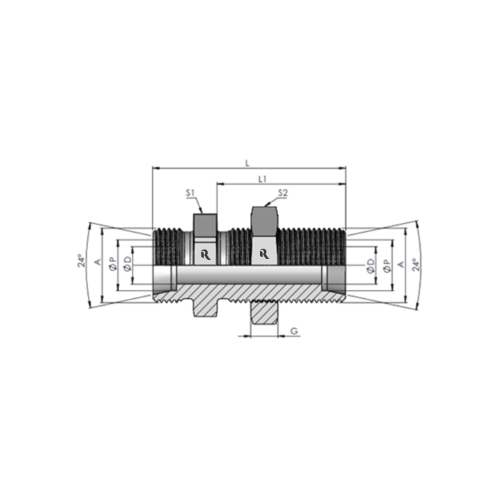

| Tube O.D. | A Thread | S1 Hex | S2 Hex | S3 Hex | L | L1 | ØD DRILL | ØP | G | L6 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M14X1.5-6g | 19.00 | 19.00 | 17.00 | 55.00 | 36.00 | 4.00 | 6.00 | 5.50 | 71.00 | RJ511229000606 | RJSV06S | 14-16 | 630 |
| 8 | M16X1.5-6g | 22.00 | 22.00 | 19.00 | 56.00 | 36.00 | 5.00 | 8.00 | 6.00 | 72.00 | RJ511229000808 | RJSV08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 24.00 | 24.00 | 22.00 | 59.00 | 37.00 | 7.00 | 10.00 | 7.00 | 77.00 | RJ511229001010 | RJSV10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 27.00 | 27.00 | 24.00 | 60.00 | 38.00 | 8.00 | 12.00 | 7.00 | 78.00 | RJ511229001212 | RJSV12S | 43-54 | 630 |
| 14 | M22X1.5-6g | 30.00 | 30.00 | 27.00 | 64.00 | 40.00 | 10.00 | 14.00 | 8.00 | 85.00 | RJ511229001414 | RJSV14S | 50-62 | 630 |
| 16 | M24X1.5-6g | 32.00 | 32.00 | 30.00 | 65.00 | 40.00 | 12.00 | 16.00 | 10.00 | 85.00 | RJ511229001616 | RJSV16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 41.00 | 41.00 | 36.00 | 72.00 | 44.00 | 16 | 20 | 10.00 | 94.00 | RJ511229002020 | RJSV20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 46.00 | 46.00 | 46.00 | 79.00 | 47.00 | 20 | 25 | 12.00 | 103.00 | RJ511229002525 | RJSV25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 50.00 | 50.00 | 50.00 | 86.00 | 51.00 | 25 | 30 | 11.00 | 112.00 | RJ511229003030 | RJSV30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 65.00 | 65.00 | 60.00 | 91.00 | 53.00 | 32 | 38 | 14.00 | 121.00 | RJ511229003838 | RJSV38S | 200-245 | 250 |
