Description

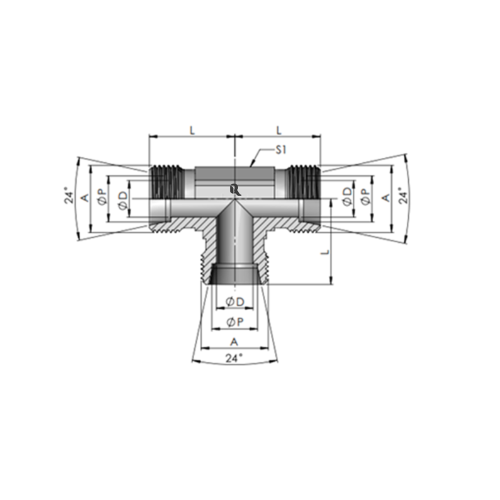

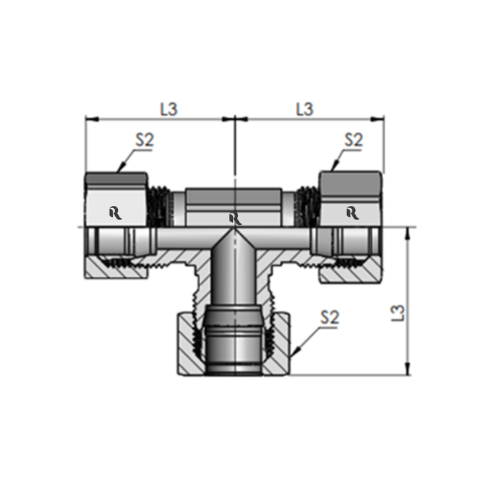

| Tube O.D. | A Thread | S1 Hex | S2 Hex | L Length | ØD DRILL | ØP | L3 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M14X1.5-6g | 14.00 | 17.00 | 23.00 | 4.00 | 6.00 | 31.00 | RJ-511240060606 | RJ-T06S | 14-16 | 630 |
| 8 | M16X1.5-6g | 14.00 | 19.00 | 24.00 | 5.00 | 8.00 | 32.00 | RJ-511240080808 | RJ-T08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 17.00 | 22.00 | 25.00 | 7.00 | 10.00 | 34.00 | RJ-511240101010 | RJ-T10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 17.00 | 24.00 | 29.00 | 8.00 | 12.00 | 38.00 | RJ-511240121212 | RJ-T12S | 43-54 | 630 |
| 14 | M22X1.5-6g | 24.00 | 27.00 | 30.00 | 10.00 | 14.00 | 40.00 | RJ-511240141414 | RJ-T12S | 50-62 | 630 |
| 16 | M24X1.5-6g | 24.00 | 30.00 | 33.00 | 12.00 | 16.00 | 43.00 | RJ-511240161616 | RJ-T16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 27.00 | 36.00 | 37.00 | 16.00 | 20.00 | 48.00 | RJ-511240202020 | RJ-T20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 36.00 | 46.00 | 42.00 | 20.00 | 25.00 | 54.00 | RJ-511240252525 | RJ-T25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 41.00 | 50.00 | 49.00 | 25.00 | 30.00 | 62.00 | RJ-511240253030 | RJ-T30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 50.00 | 60.00 | 57.00 | 32.00 | 38.00 | 72.00 | RJ-511240253838 | RJ-T38S | 200-245 | 250 |
